MiBoard IFP V13.T1
Specification
| Item | Description | IFP85 | |||
| Panel | Diagonal Size | 85" | |||
| Backlight Type | D-LED | ||||
| Aspect Ratio | 16:09 | ||||
| Resolution | 3840*2160 | ||||
| Brightness(typ)/(min) | 480 | ||||
| Display Size(mm) | 1,870*1,051 | ||||
| Contrast Ratio (typ)/(min) | 5000:1 | ||||
| Response Time(typ)/(min) | 5ms | ||||
| Depth of Color | 10 bit | ||||
| Viewing Angle | 178° | ||||
| Life time | ≥100,000 hours | ||||
| Touch | Touch Technology | High-precision Infrared Technology | |||
| Glass | 4mm Anti-glare toughened glass | ||||
| Touch Points | 40 Points | ||||
| Touch Accuracy | ≤1mm | ||||
| Response time | <8ms | ||||
| Android | CPU | Quad-Core ARM Cortex-A55 | |||
| GPU | QMali-G52 | ||||
| RAM | 4GB | ||||
| eMMC | 32GB | ||||
| Version | Android 13.0 | ||||
| Power | Power Supply | 110-240V 50/60 Hz | |||
| Power Consumption | ≤300W | ||||

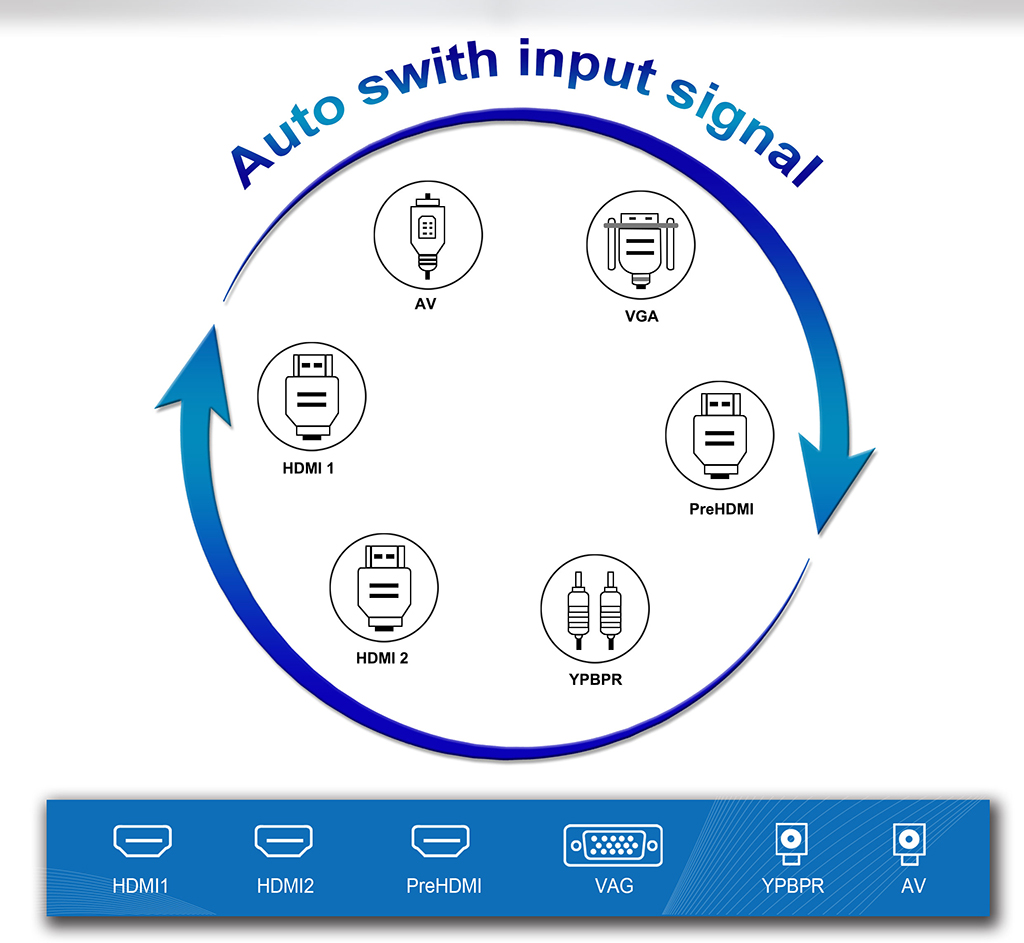

| Ports | Back Side Ports | HDMI IN*2, USB2.0*1, USB3.0*2, Touch USB*1, Optical Out*1 PC Audio In*1, RS232*1, (Mini)LINE OUT*1, YPBPR*1,RJ45*2, Optional (Type C*1, HDMI Out*1, VGA In*1, DP*1.) | |||
| Front Ports | HDMl IN*1, Touch Out*1, USB 3.0*3, Type-c*1 | ||||

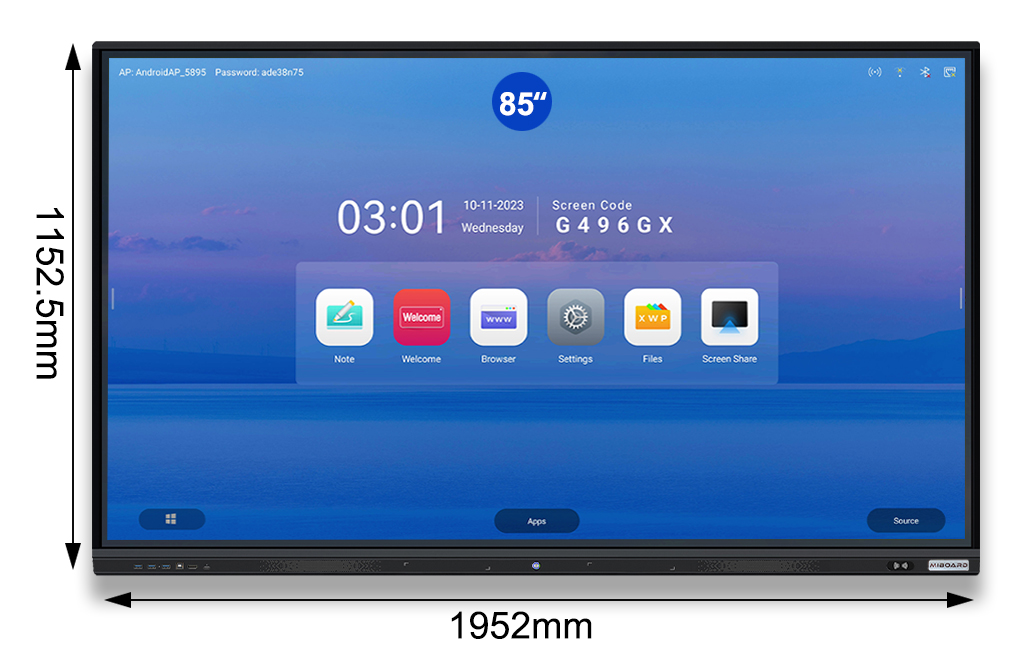

| Size | Panel Size(mm) | 1952*89*1153 | |||
| Package Size(mm) | 2092*215*1319 | ||||
| Weight | Net Weight(KG) | 66 | |||
| Gross Weight(KG) | 83 | ||||
| Speaker | Audio Out Power 15W*2 8Ω | ||||
| Environment | Working Temperature - 0ºC~40ºC, Operational humidity≤80% RH, Storage temperature:-10ºC~60ºC, Altitude Below 5000 meters. | ||||

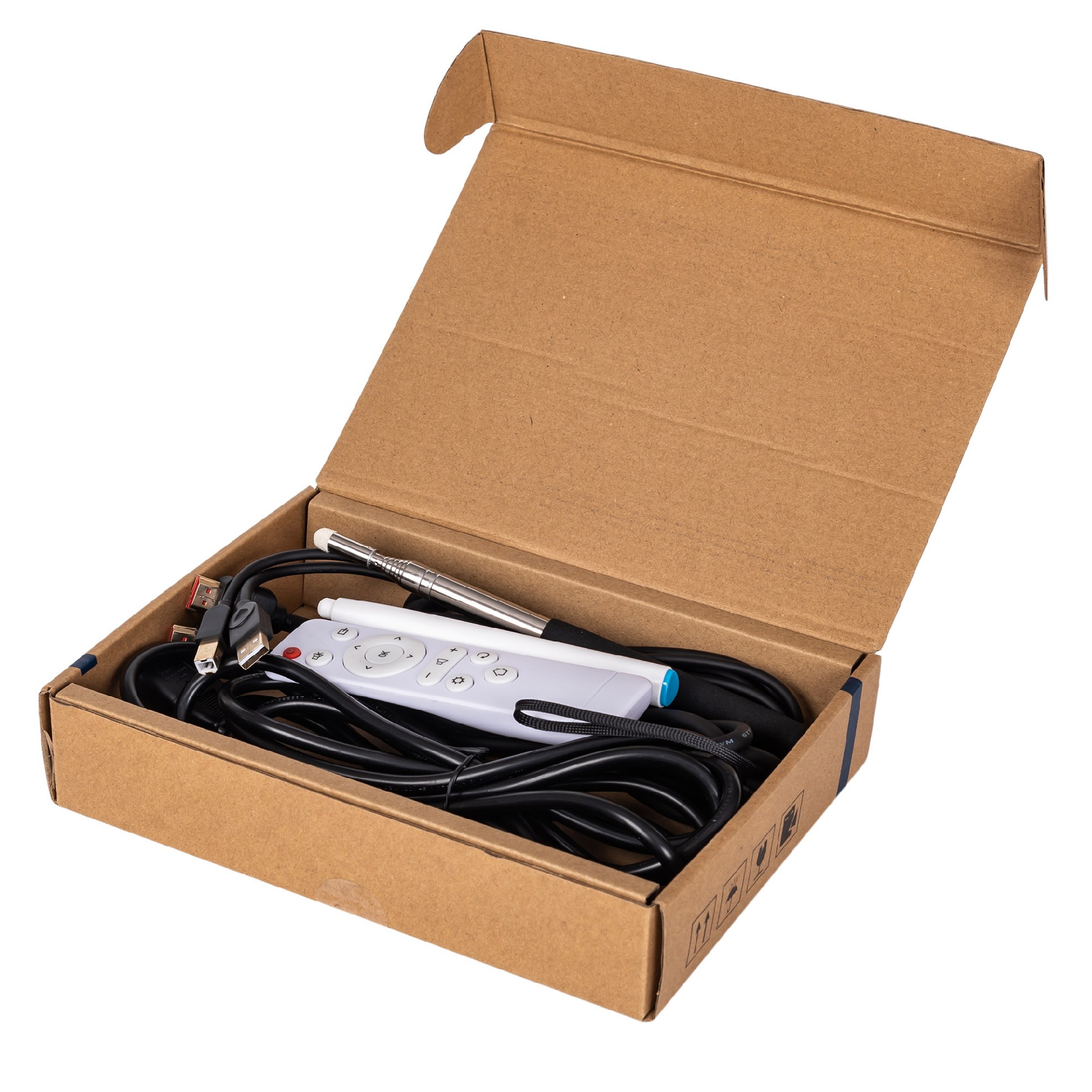

| Accessories | Remote Control*1, Power Cord*1(3m), HDMI cable(2m), Touch Cable*1 (2m), Passive pen*1, Wall mount*1 | ||||
| Warranty | 3 years return workshop | ||||

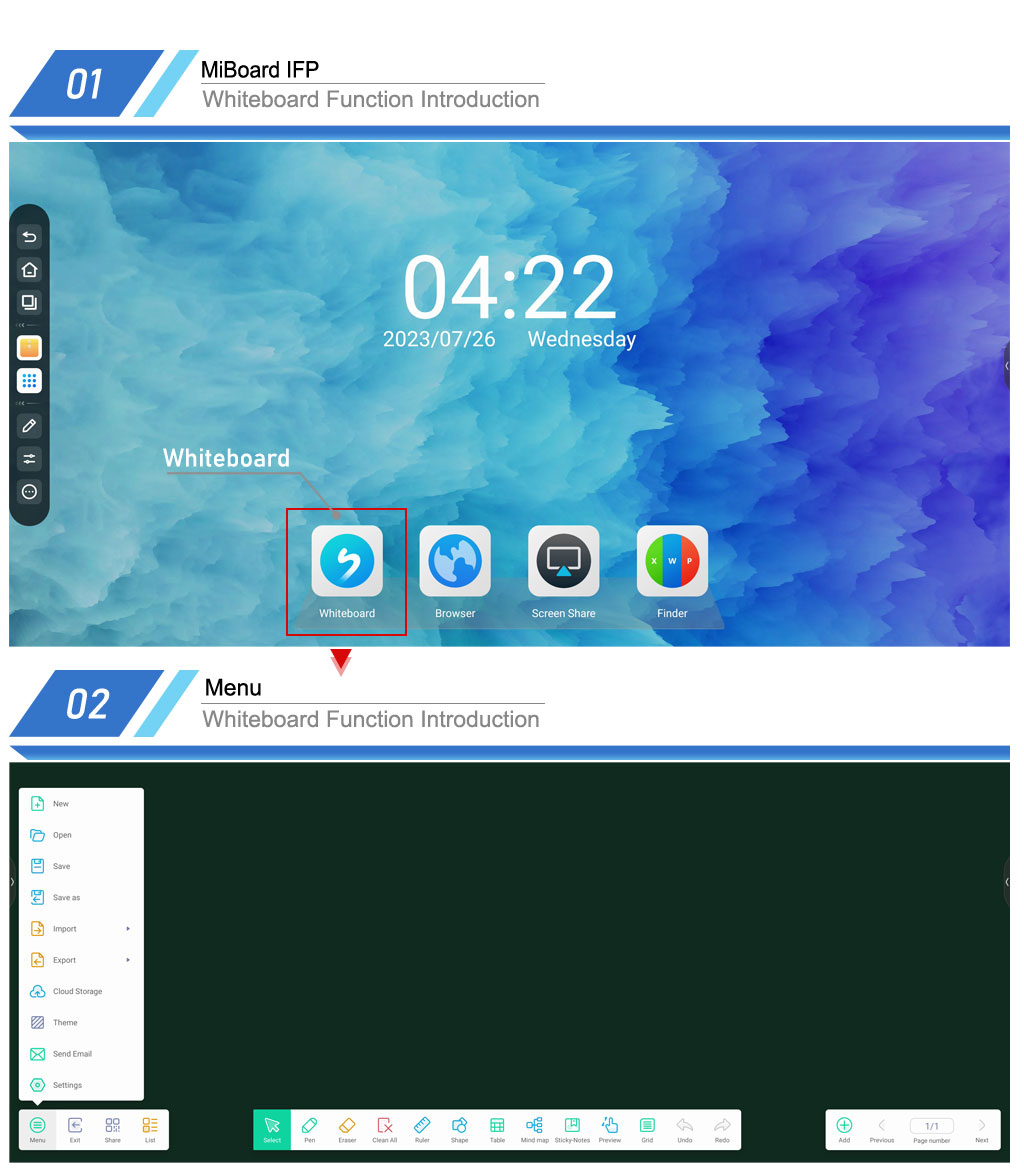

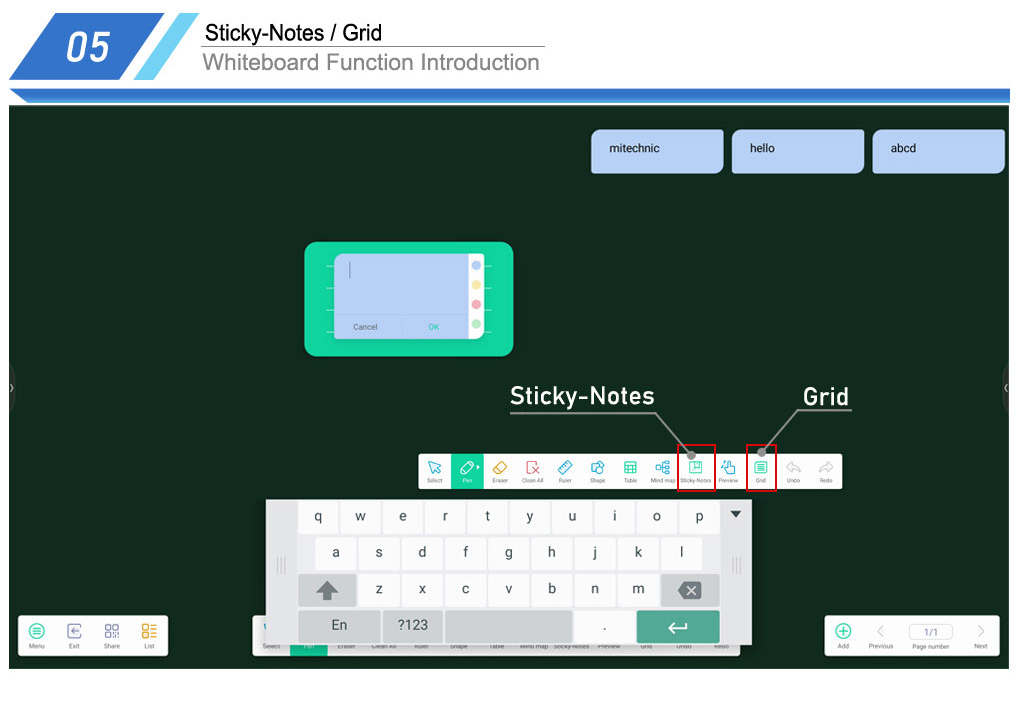

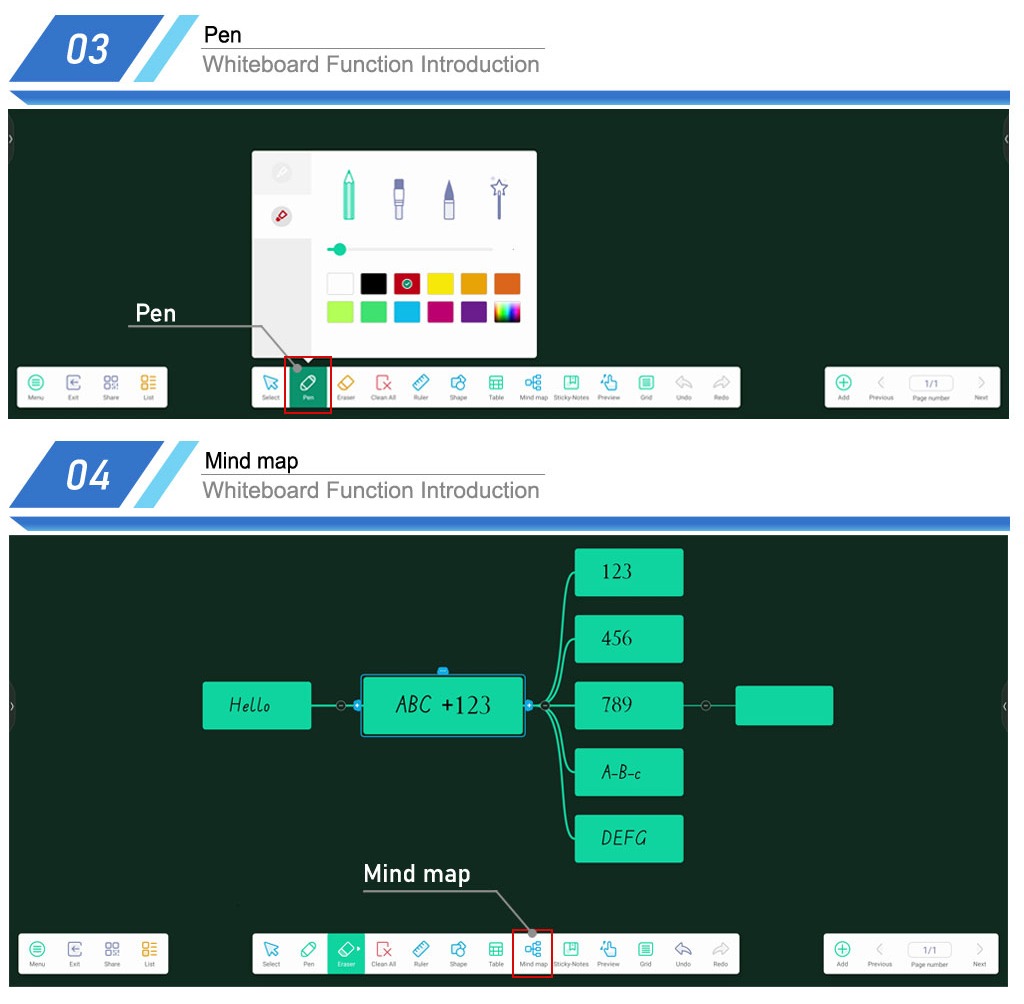

| Special Features | Built with Google Play, Enable Annotation in all Channels, Screenshot, Gesture Eraser, Smart Writing,Dual Pens with two colors writing. | ||||
| Components | Power Cable, HDMI Cable , Touch Cable, Controller, Wall Hanger, Passive Pen. | ||||
| OPS(Optional) | CPU：I3-I7(3th Gen- 13th Gen)， RAM：8GB-32GB， SSD：128GB-1T, OS: Windows 10/ Windows 11 Home/Pro, WIFI: Dual Band 2.4G/5G, Bluetooth 4.2, LAN 1000MB. | ||||
| Optional Components | Movable Stand, Webcam, Pen with two tips, OPS , Pointer.
| ||||

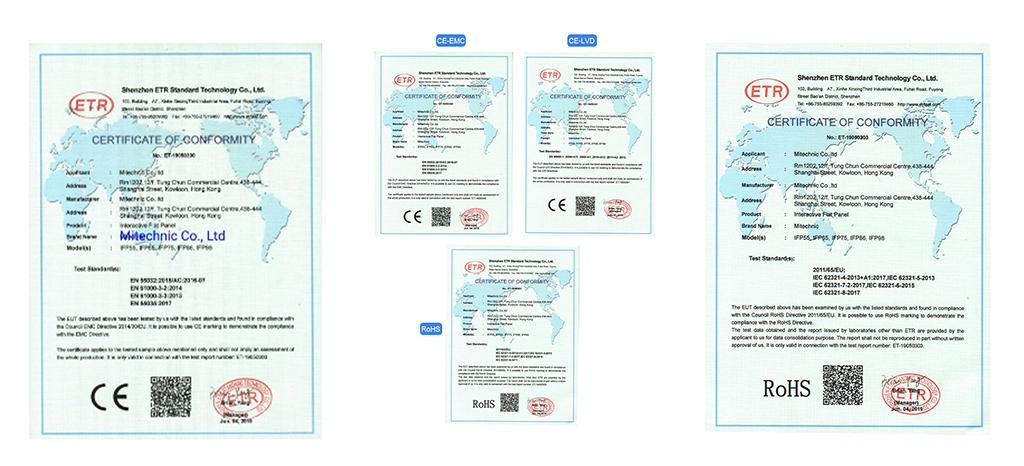

Certifications

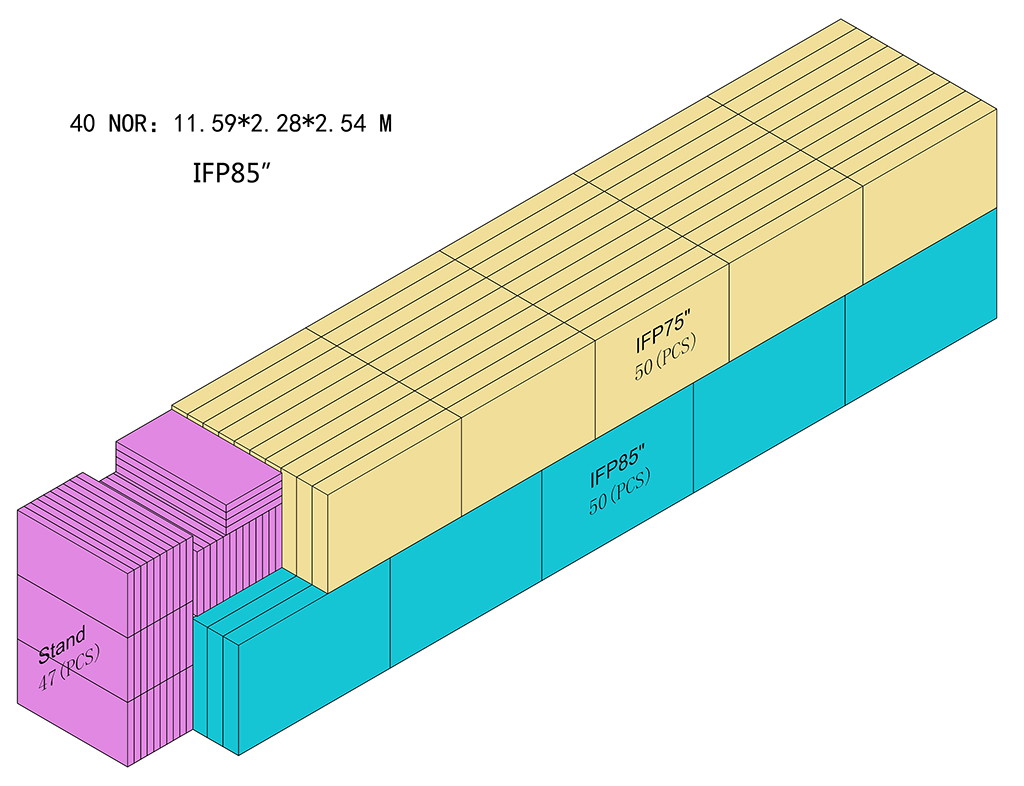

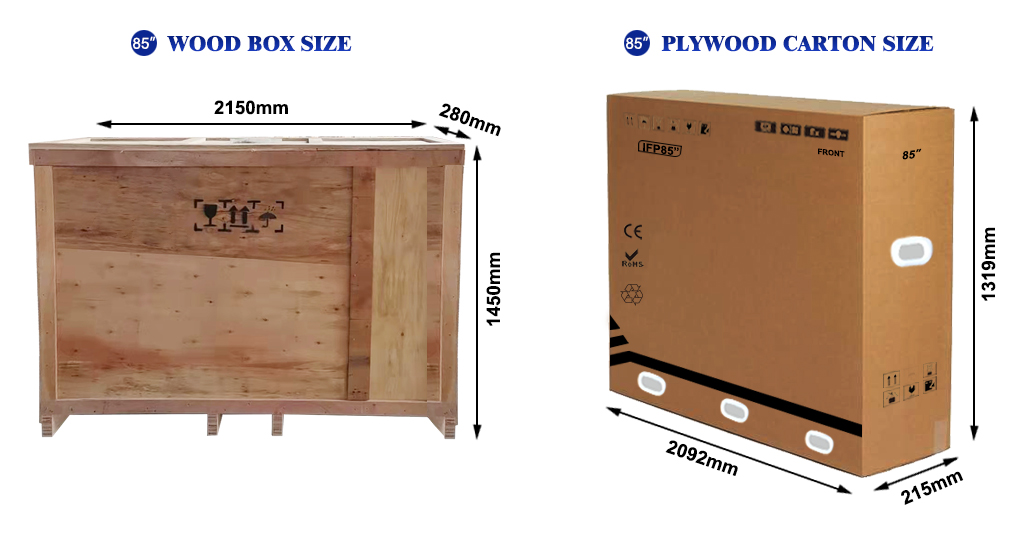

Packaging & Shipping
