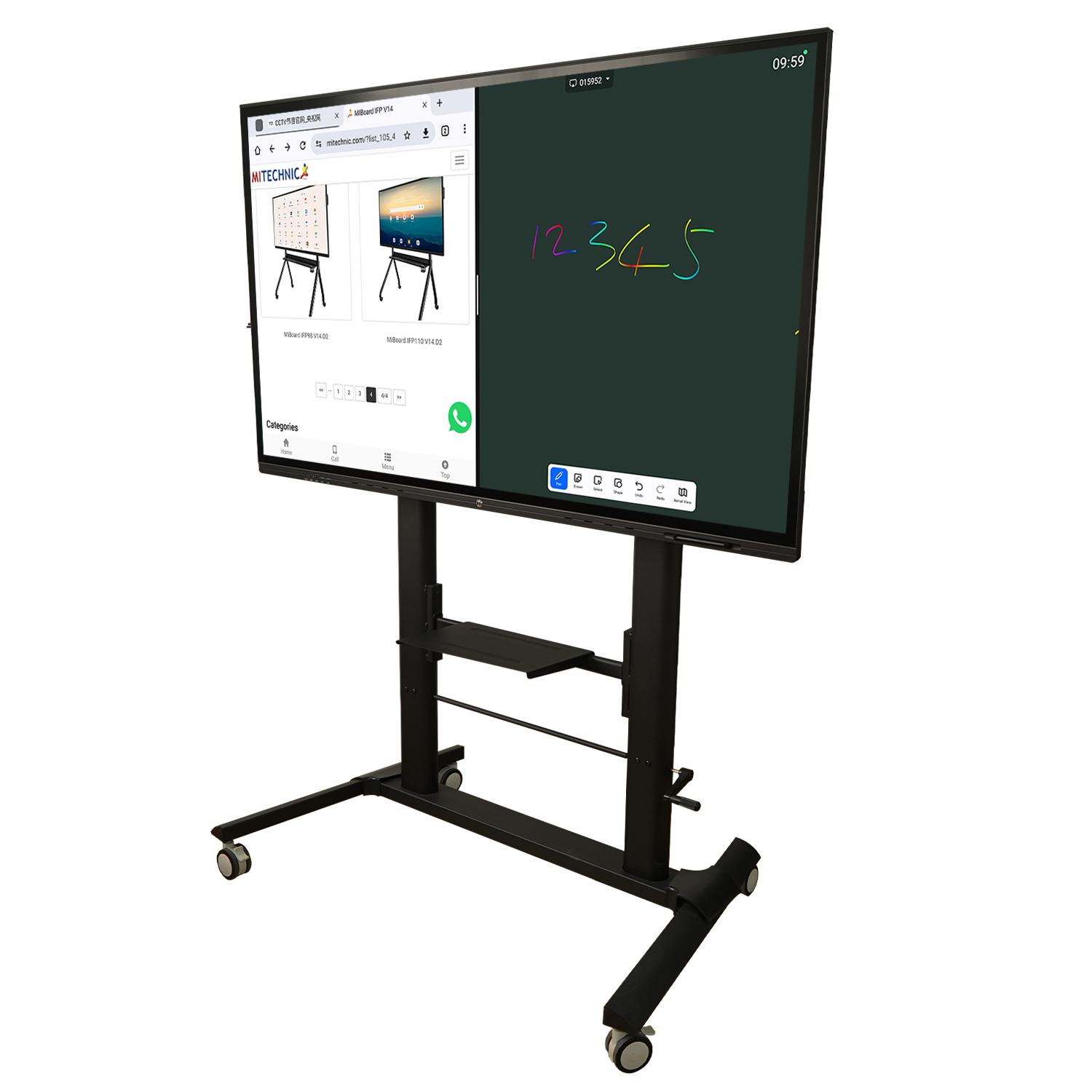

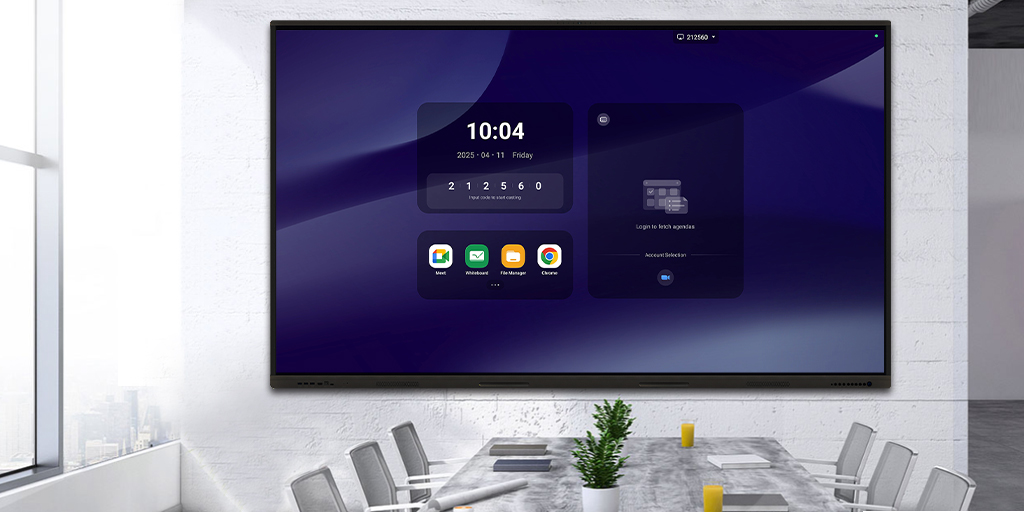

MIBoard IFP V14.E2
MiBoard IFP V14.E2 is an interactive touch screen, which uses infrared technology. It replaces projector and traditional interactive whiteboard. It creates smooth and natual writing experience. It has got Google EDLA certificate. It has added a lot of whiteboard software functions, and also has AI function.

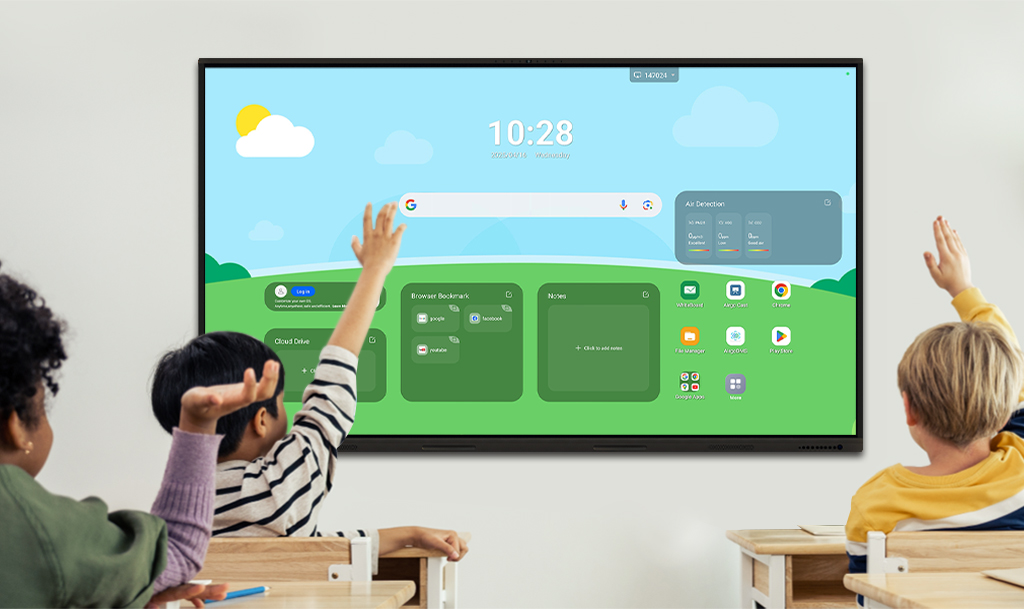

Education Theme

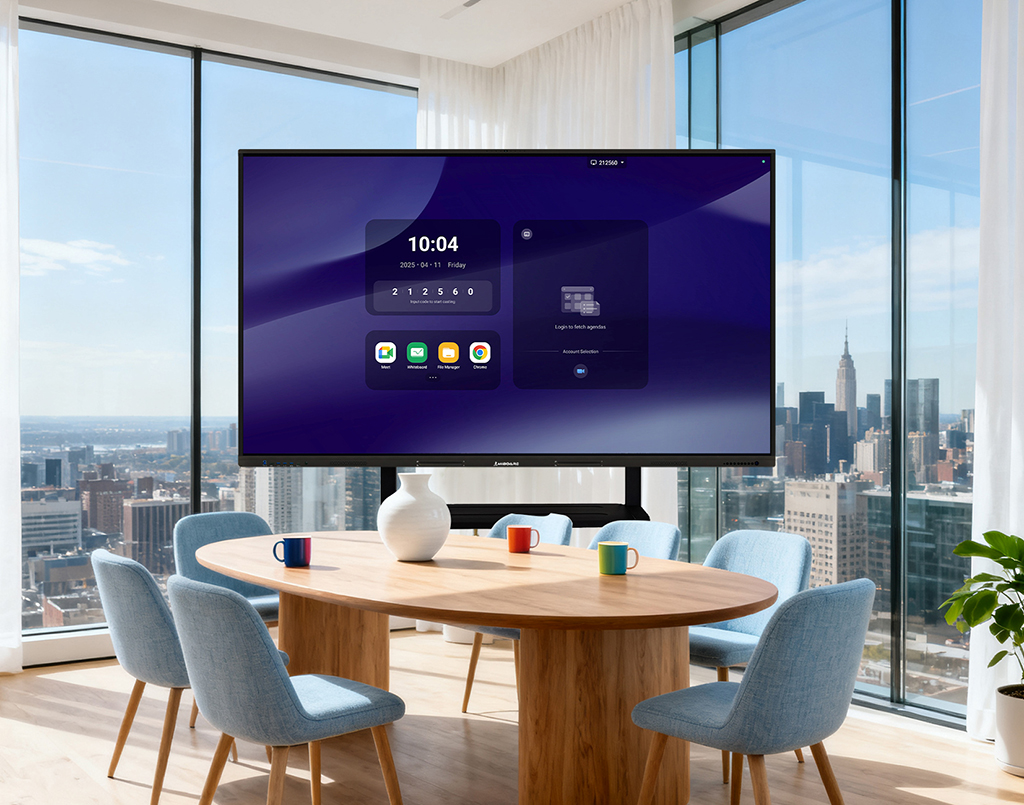

Conference Theme
Dual OS, Windows and Android
Users can switch between Windows and Android OS freeely. It uses A72 x4 + A53 x4 CPU, It has greatly improved the performance. User can run all kinds of app smoothly.

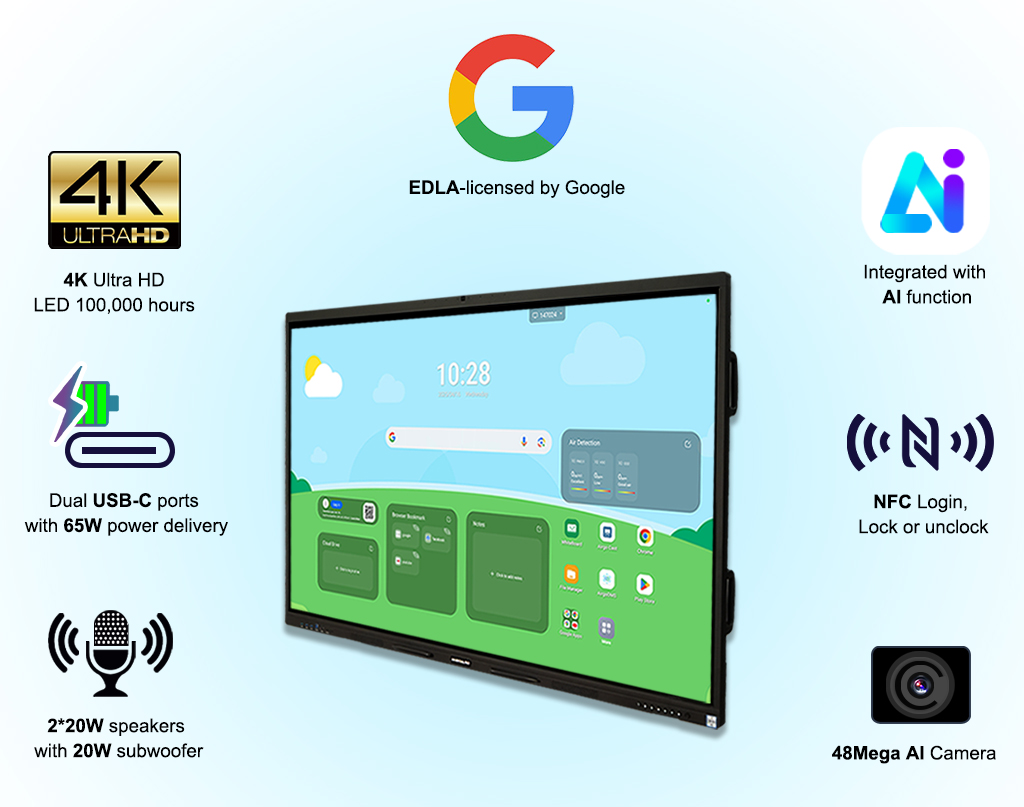

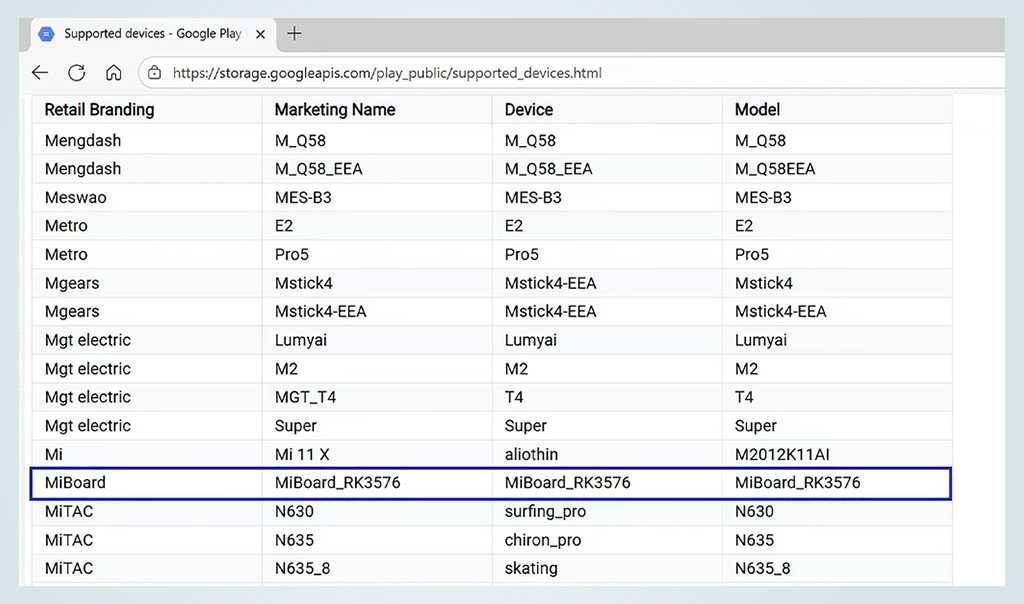

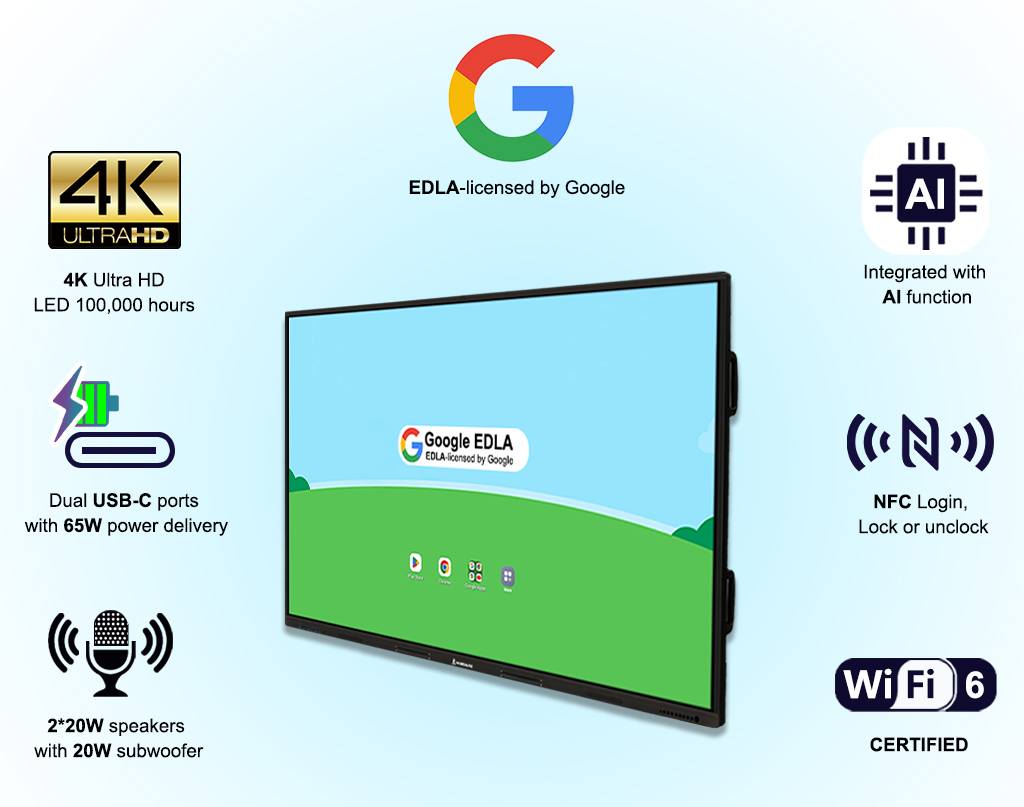

EDLA-licensed by Google
Our brand EDLA has been published in Google offical website.

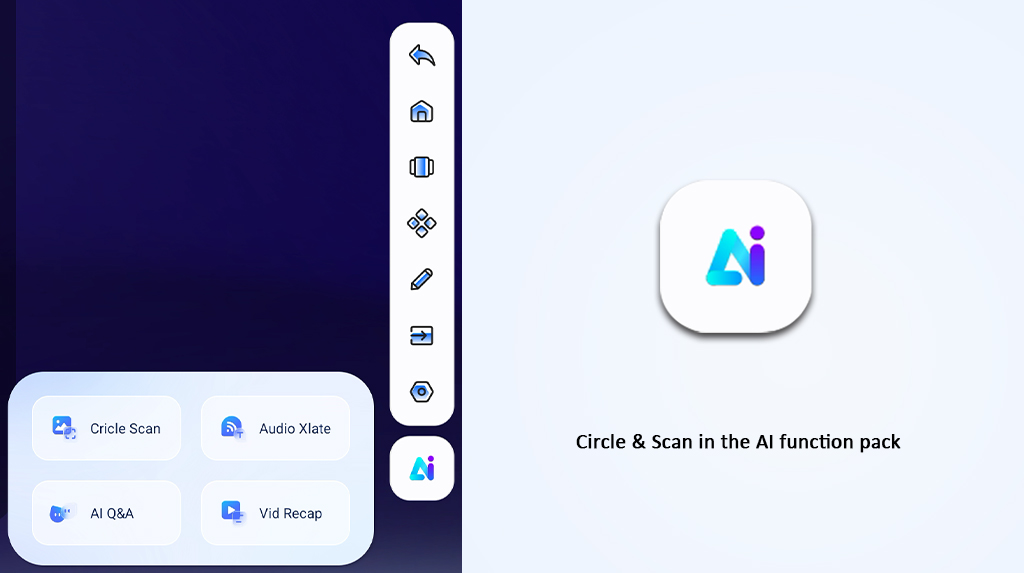

AI function
It has a lot of AI functions, such as Circle Scan, Audio Xlate, AI Q&A, Vid Recap and so on.

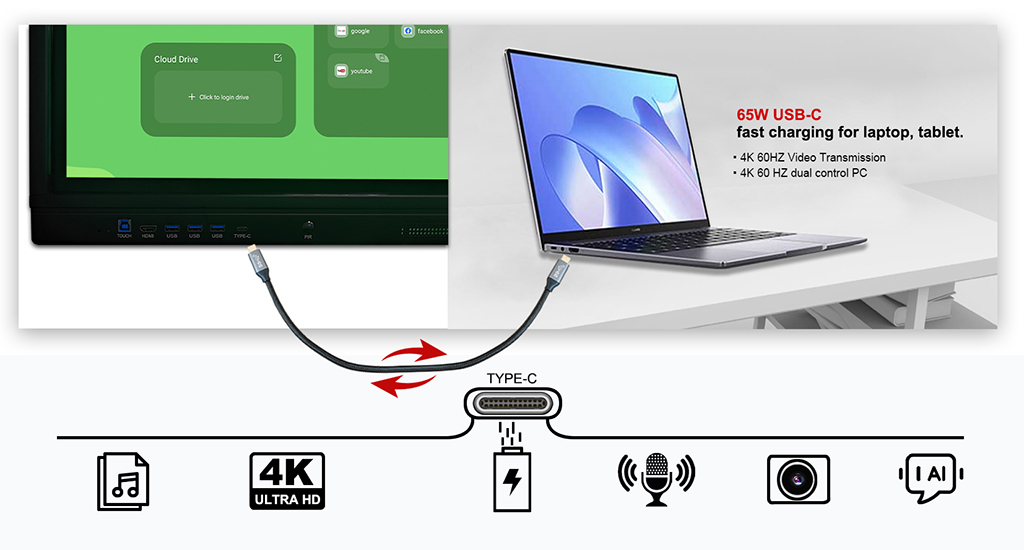

Type-C In Versatile Connectivity
Experience seamless connectivity with the versatile Type-C port. RK3588 smart board effortlessly connect to webcams, microphones, speakers, USB flash drives, and wired networks by simply plugging in a cable. And with up to 100W of charging performance, our device stays poweredthroughout your lessons.

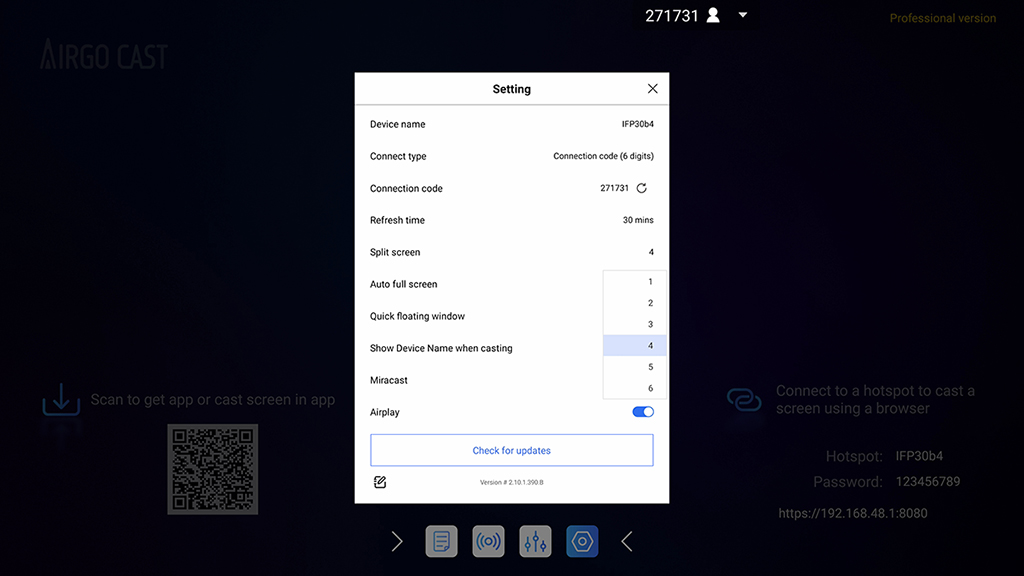

Integrated Airgo Cast Software
Airgo Cast defaultly supports mirroring Windows, Android to IPF up to 4 screens at the same time. It can customize up to 6 screens.It allows students to share theirthoughts and ideas wirelessly from their portable devices (laptop or Smart Phone). Audience or students can remote control the IFP from their laptop or smart phone.

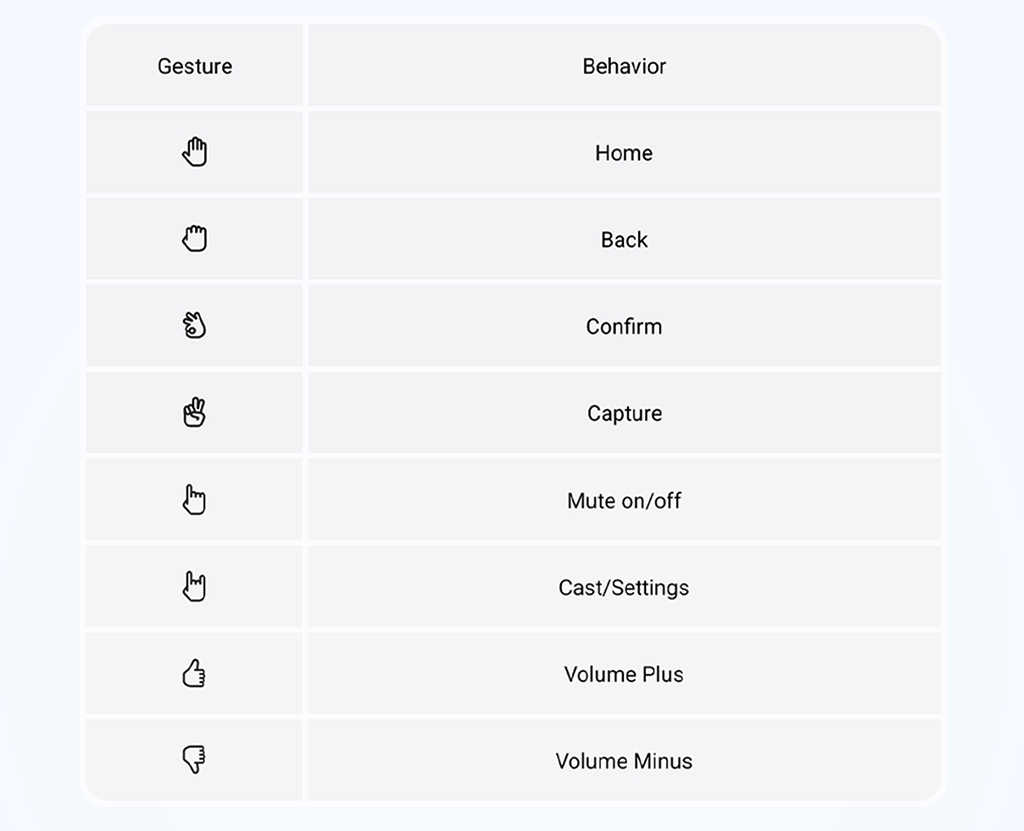

Camera Gesture
The IFP is equipped with a camera, when the switch is on, the system
will continuously monitor the following gestures via the camera, and
when a certain gesture is maintained for 1.5s, the corresponding action
will be triggered.

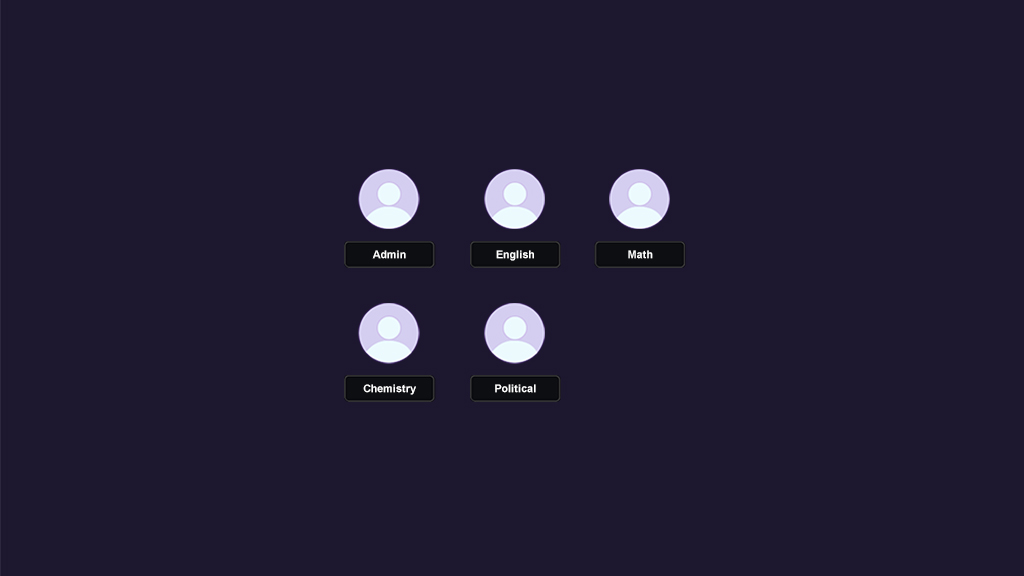

Multi-Users Management
Manage multiple users with support for up to 5 individuals, each enjoying customized options.

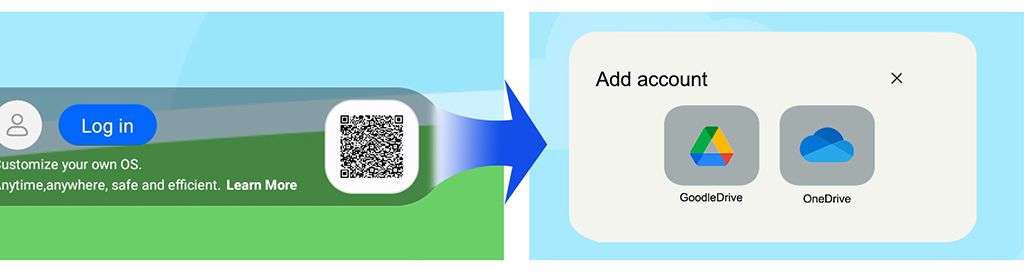

Drive cloud storage directly
1.User can scan the QR code to sign in with your account to customize your own OS. Anytime, 2. User can add Google Drive cloud storage directly from the File Library.
anytime, anywhere, safe and efficient.
50 points
Support 50 points touch points for Windows

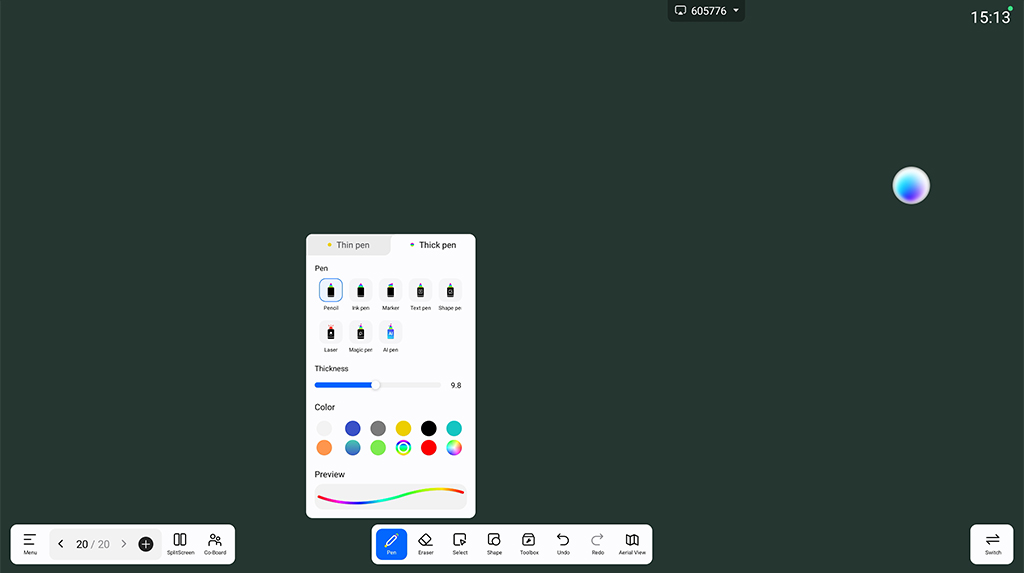

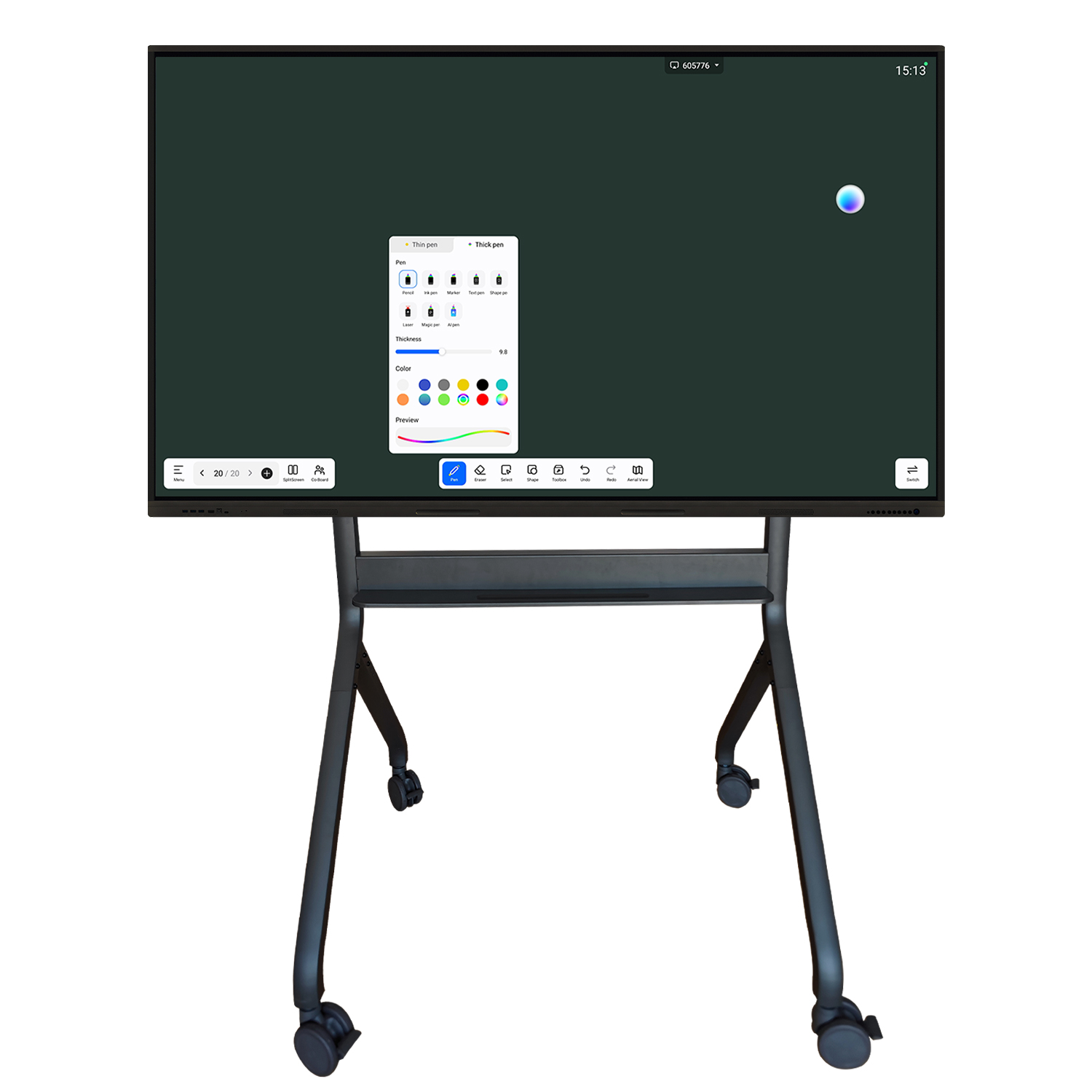

Intergrated with strong Whiteboard Software

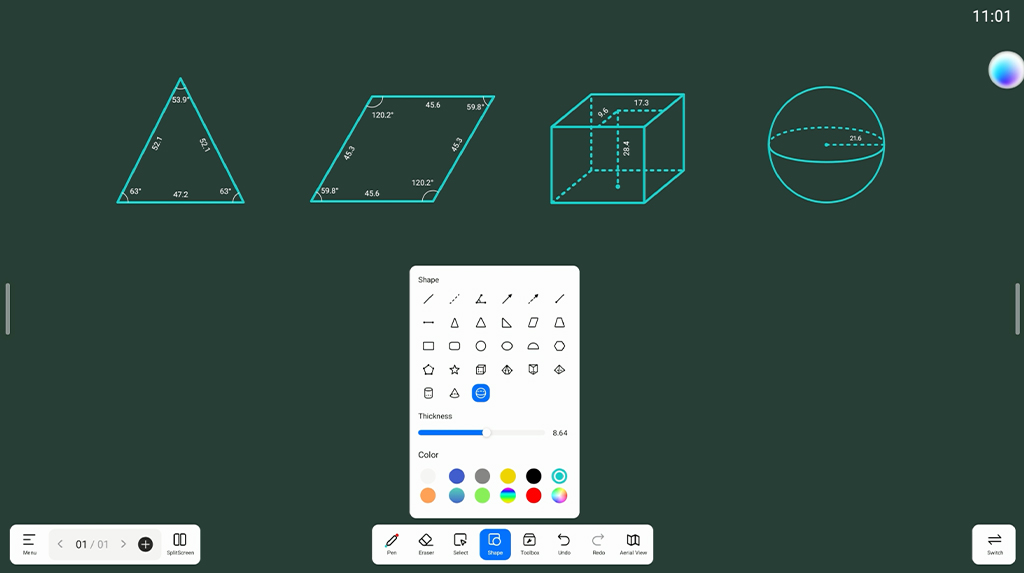

Select a shape and move it with touch to draw different geometric shapes, including lines, plane shapes, and stereo shapes.
Dual thick tips of stylus
Set the stroke size (which can be automatically recognized), the color of the writing, the weight of the writing, and the stroke type.
Palm Rejection Pressure Sensing Writing
| Item | Description | IFP75 | |||
| Panel | Diagonal Size | 75" | |||
| Backlight Type | D-LED | ||||
| Aspect Ratio | 16:09 | ||||
| Resolution | 3840*2160 | ||||
| Brightness(typ)/(min) | 500 | ||||
| Display Size(mm) | 1,652*930 | ||||
| Contrast Ratio (typ)/(min) | 5000:1 | ||||
| Response Time(typ)/(min) | 5ms | ||||
| Depth of Color | 10 bit | ||||
| Viewing Angle | 178° | ||||
| Life time | ≥100,000 hours | ||||
| Touch | Touch Technology | High-precision Infrared Technology | |||
| Glass | 4mm Anti-glare toughened glass | ||||
| Touch Points | 50 Points | ||||
| Touch Accuracy | ≤1mm | ||||
| Response time | <8ms | ||||
| Android | CPU | A72 x4 + A53 x4 | |||
| GPU | G52 MC3 | ||||
| RAM | 8/16 GB | ||||
| eMMC | 128 GB | ||||
| CPU Clock speed | 2.2GHz | ||||
| LAN | Wired LAN: RJ45 IN 1000MB+ RJ45 OUT 1000MB | ||||
| Version | Android 14.0 | ||||
| Kernel | 6.1 | ||||
| Wi-Fi | Wi-Fi 6 2.4G+5G+Bluetooth5.2 | ||||
| Chipset | RK3576 | ||||
| Video Input | HDMI | 480P/1080P/4K@60Hz | |||
| CEC, ARC(HDMI 1) | |||||
| HDMI Version 1.4/2.0/2.1 | |||||
| HDCP Version 1.4/2.2/2.3 | |||||
| DP | 480P/1080P/4K@60Hz | ||||
| DP Version 1.2 | |||||
| Audio Input | USB-C DP | 480P/1080P/4K@60Hz | |||
| Analog Mic in | Input Level 0.1~1.0VRMS | ||||
| Power | Power Supply | 110-240V 50/60 Hz | |||
| Power Consumption | ≤270W | ||||
| Ports | Back Side Ports | RS232*1, MIC In*1, SPDIF/OPTICAL*1, LINE Out*1, LAN Out*1, LAN In*1, HDMI In*2, HDMI Out*1, DP In*1, TF Slot*1, PUBLIC Touch USB*1,USB 3.0 Type-B*2, USB 3.0 In Type-C*1, USB 3.0 Out Type-C*1, USB 3.0 Type-A*2, USB 2.0 Type-A (for Android)*1 | |||

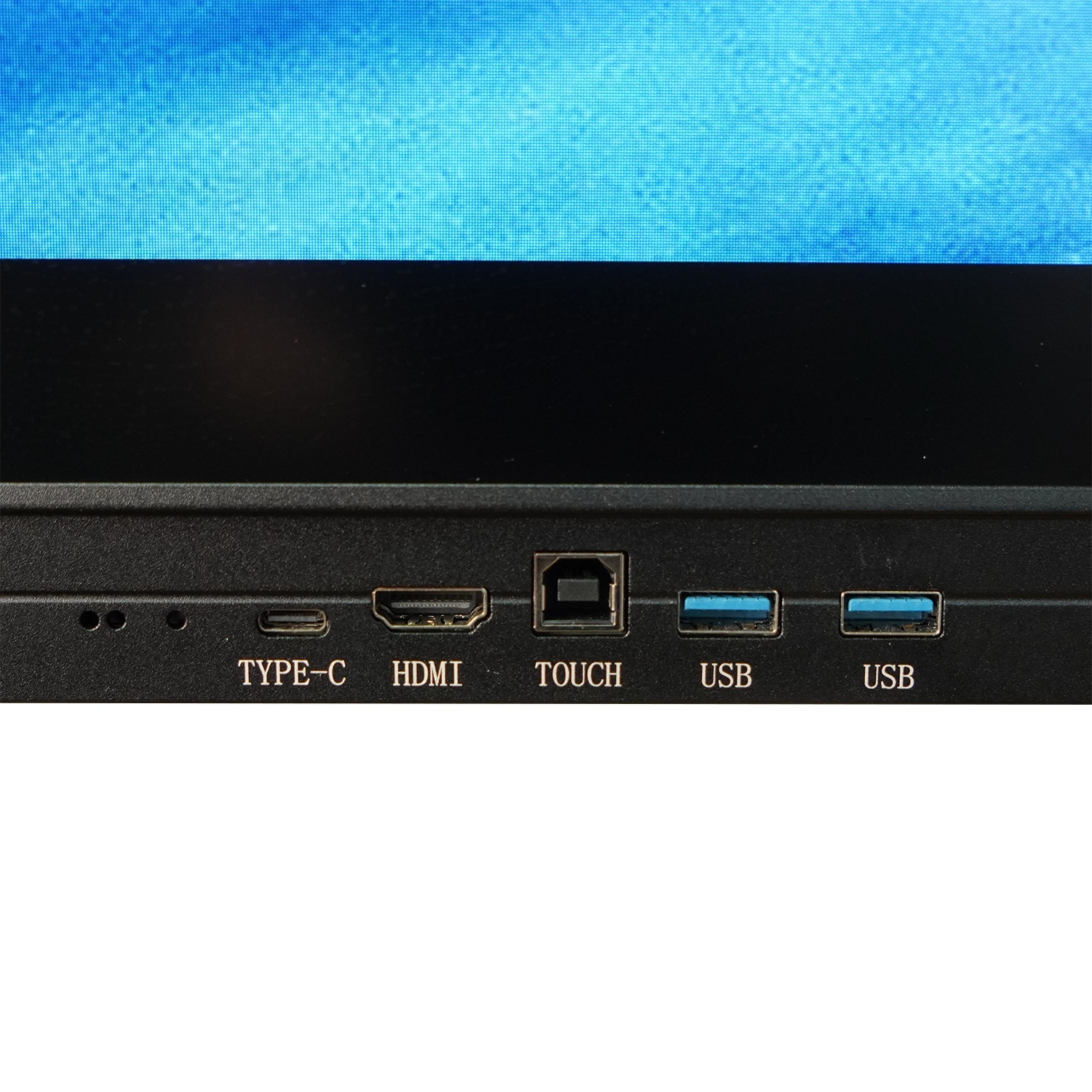

| Front Ports | HDMl IN*1, USB 3.0 Type-B*1, USB 3.0 Type-A*3, USB 3.0 Type-C*1 | ||||

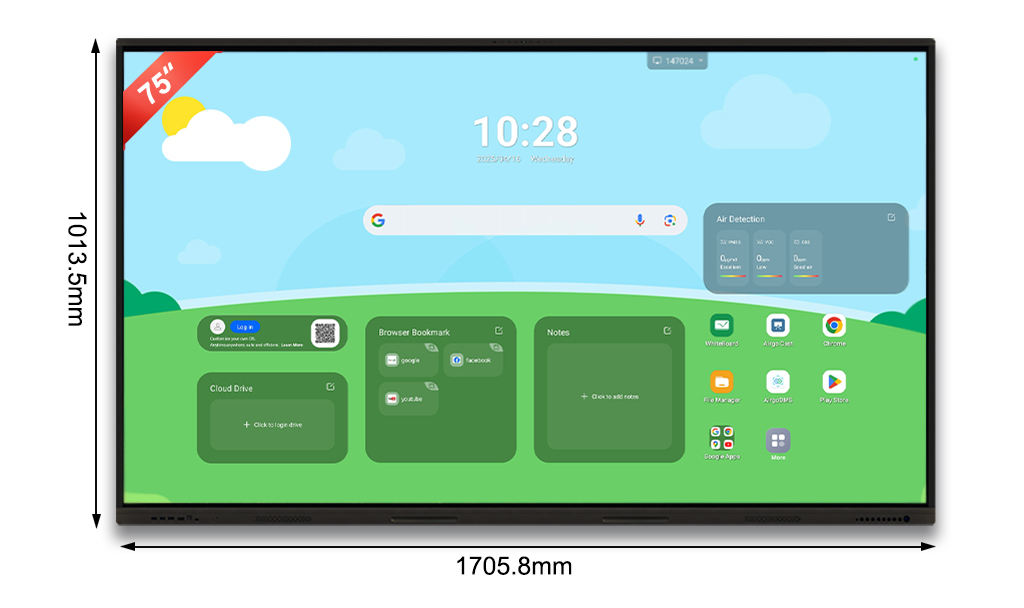

| Size | Panel Size(mm) | 1706*89*1014 | |||
| Package Size(mm) | 1830*210*1150 | ||||
| Weight | Net Weight(KG) | 45 | |||
| Gross Weight(KG) | 61 | ||||
| Speaker | Audio Out Power 20W*2 8Ω | ||||
| Camera (Optional) | 48 Megapixels AI face&voice tracking camera | ||||
| Microphone (Optional) | 8 Built-in High Reception Microphone | ||||
| Physical Shortcut Buttons (Optional) | Touch Lock, Setting, Home, Screen Record, Eye Care, Volume Up, Volume Down, Power | ||||
| Environment | Working Temperature - 0ºC~40ºC, Operational humidity≤80% RH, Storage temperature:-10ºC~60ºC, Altitude Below 5000 meters. | ||||

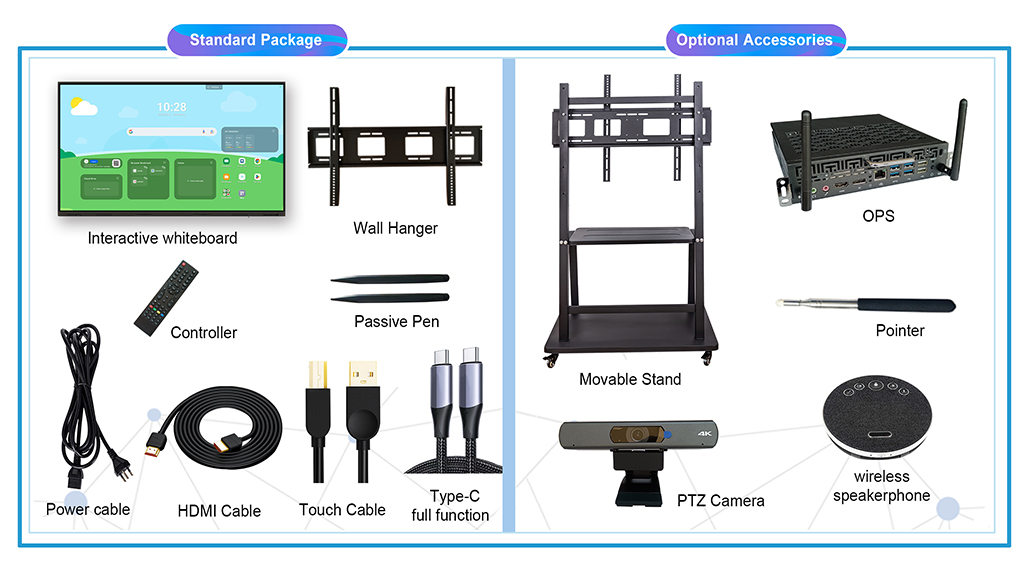

| Accessories | Remote Control*1, Power Cord*1(3m), HDMI cable(2m), Touch Cable*1 (2m), Passive pen*1, Wall mount*1 | ||||
| Certifications | EDLA certification Enterprise Device License Agreement (EDLA) with pre- installed Android applications. | ||||
| Warranty | 3 years return workshop | ||||
| Special Features | Built with Google Play, Enable Annotation in all Channels, Screenshot, Gesture Eraser, Smart Writing, Dual Pens with two colors writing, Video conference support H323/H265. | ||||
| Components | Power Cable, HDMI Cable , Touch Cable, Controller, Wall Hanger, Passive Pen. | ||||

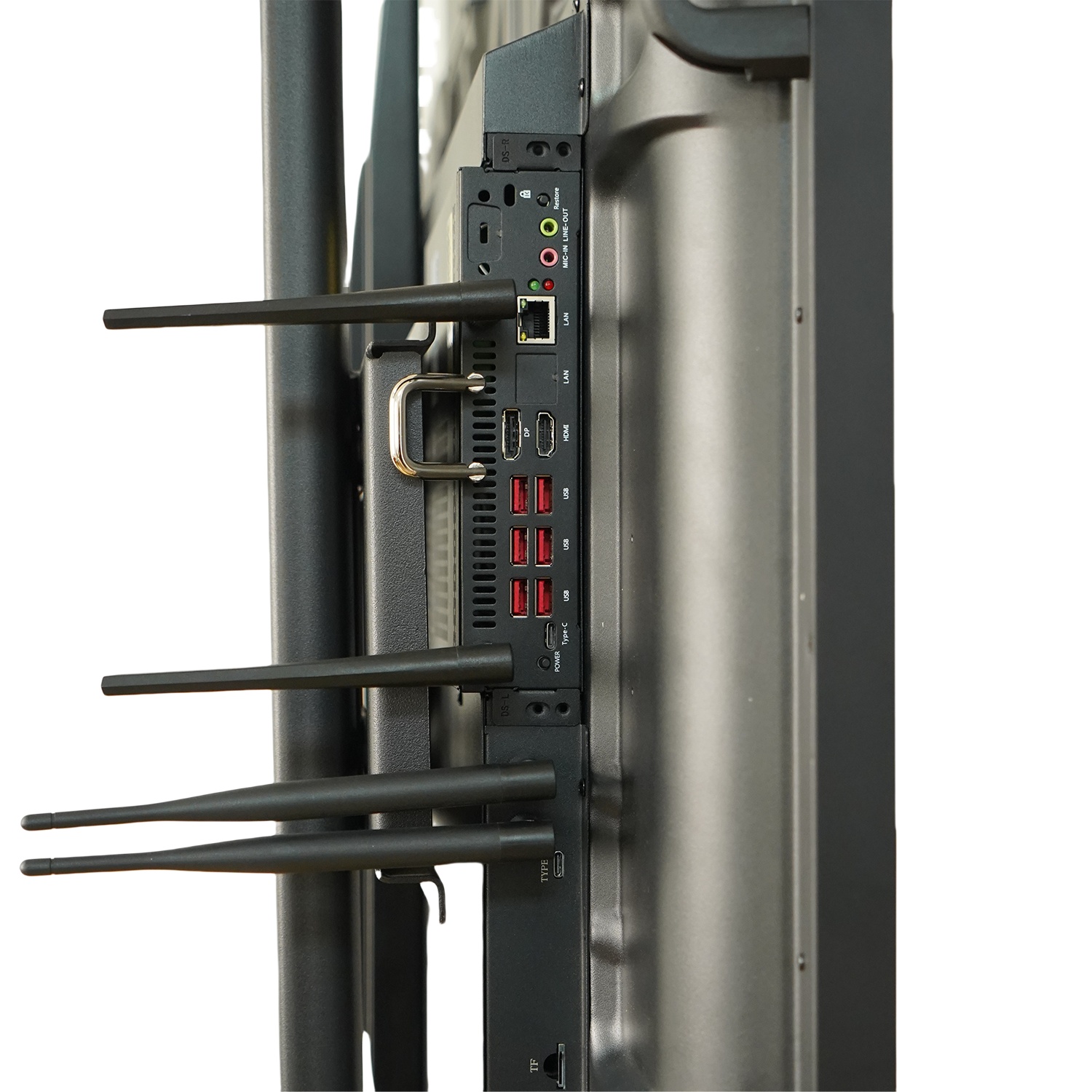

| OPS(Optional) | i5/i7, 6-13th Gen, RAM 8-32GB, SSD 256GB-1TB, Windows 11 Genius Version, Wi-Fi 6 , Bluetooth 5.1/5.2 , LAN 1000MB | ||||

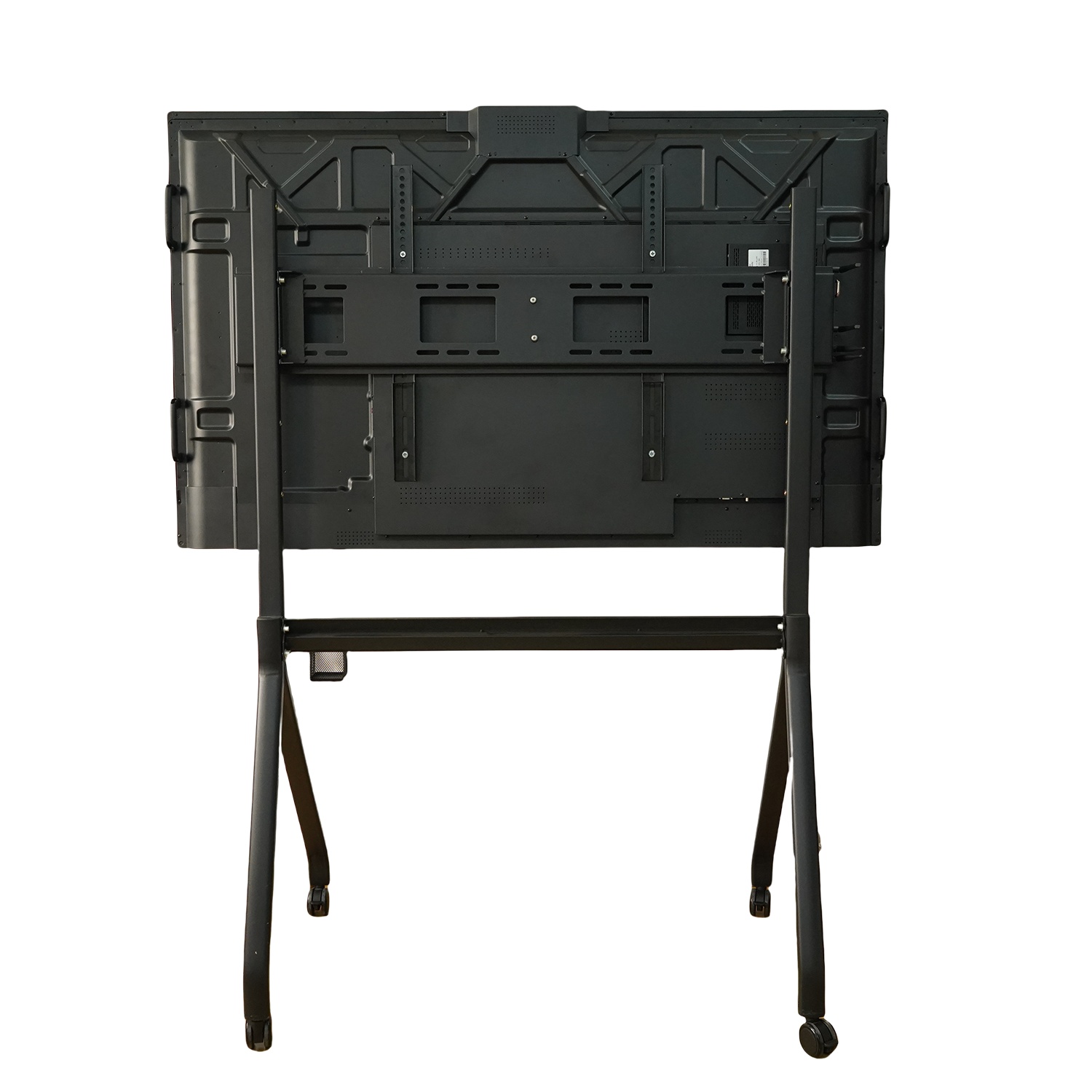

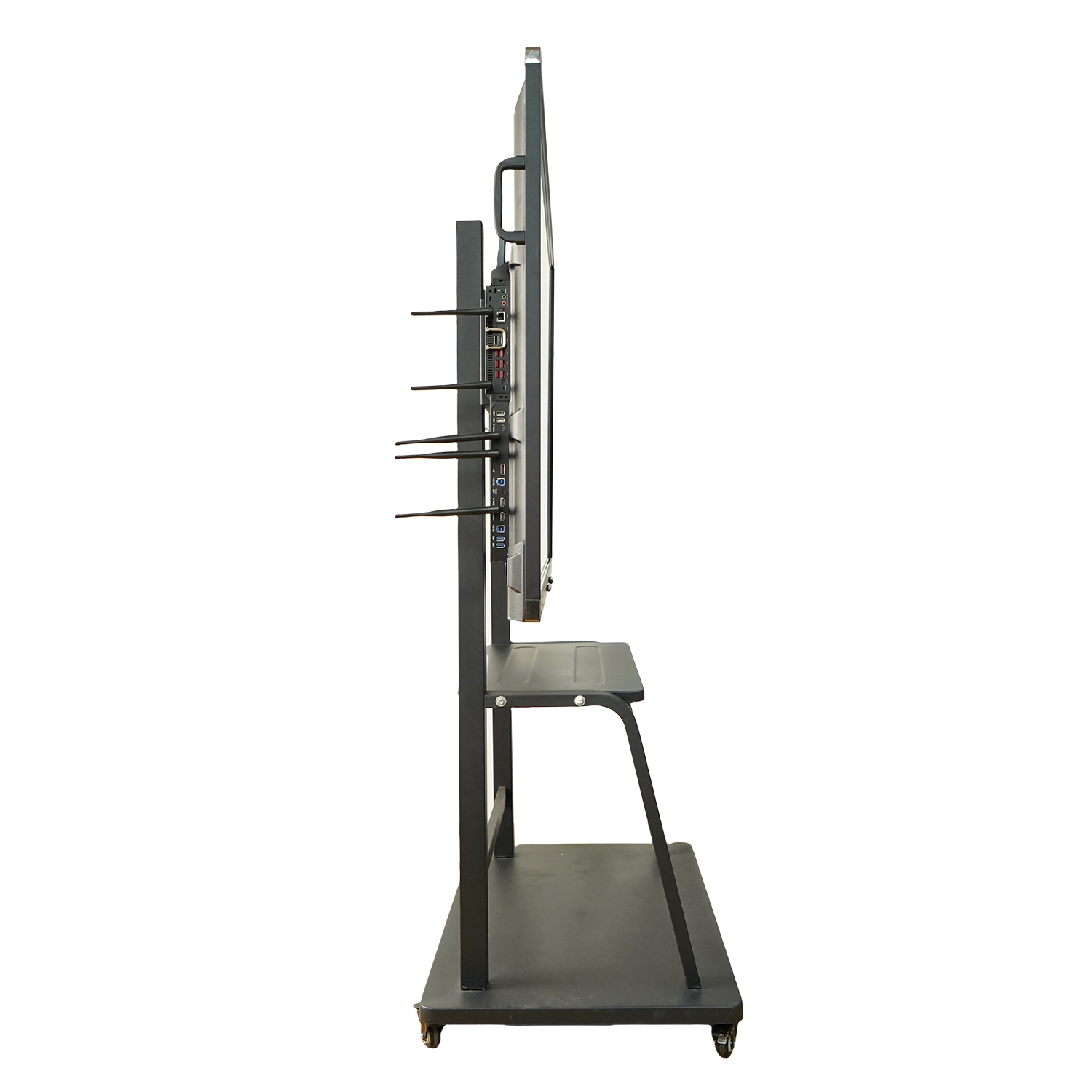

| Optional Components | Movable Stand, Wireless speakerphone, Pen with two tips, OPS , Pointer, Microphone, PTZ Camera, Speaker. | ||||
1.We use original grade A screen. It has not brightened dot and fleck.
2. We use original Tcom boards to make sure it has better display and better quality.
The following is the third party Tcon board. It can not display as perfect as the original one and it is easy to be broken. The following is from the third party Tcon board.
3. We can do OEM/ODM to our resellers if our customer order certain
quantity. We can customize or design new carton for our customer.
4. We can customize the frame color, we can make black, grey, white, or
other colors. We can customize power button shape and position. We can
customize the logo and paste on the frame.
5. With physical front shortcut buttons, such as adjusting volume, main menu, setting, it will be much conevient for users.
1. Subwoofer
20W subwoofer, 40W (optional) for better sound quality

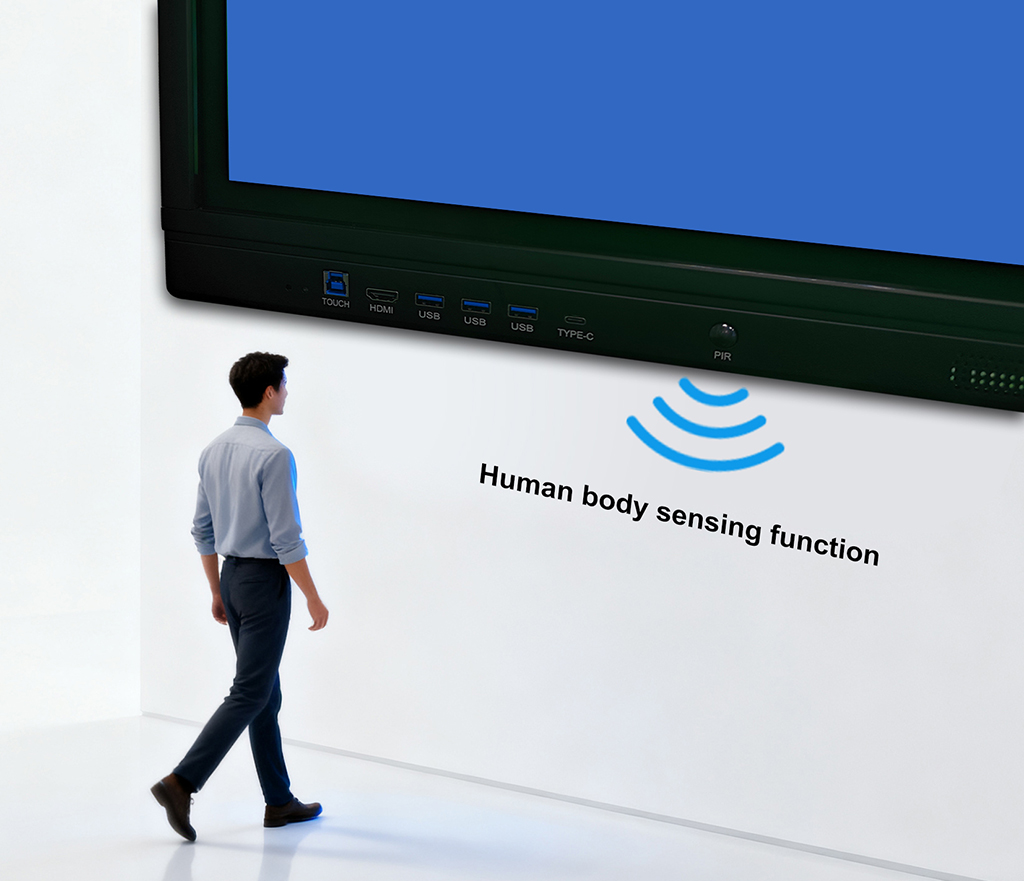

2.Human body sensing function
Within a range of 120 degrees, if there is someone within 3 meters, the system will automatically wake up. If there is no one within 1 minute, the system will automatically turn off the screen.

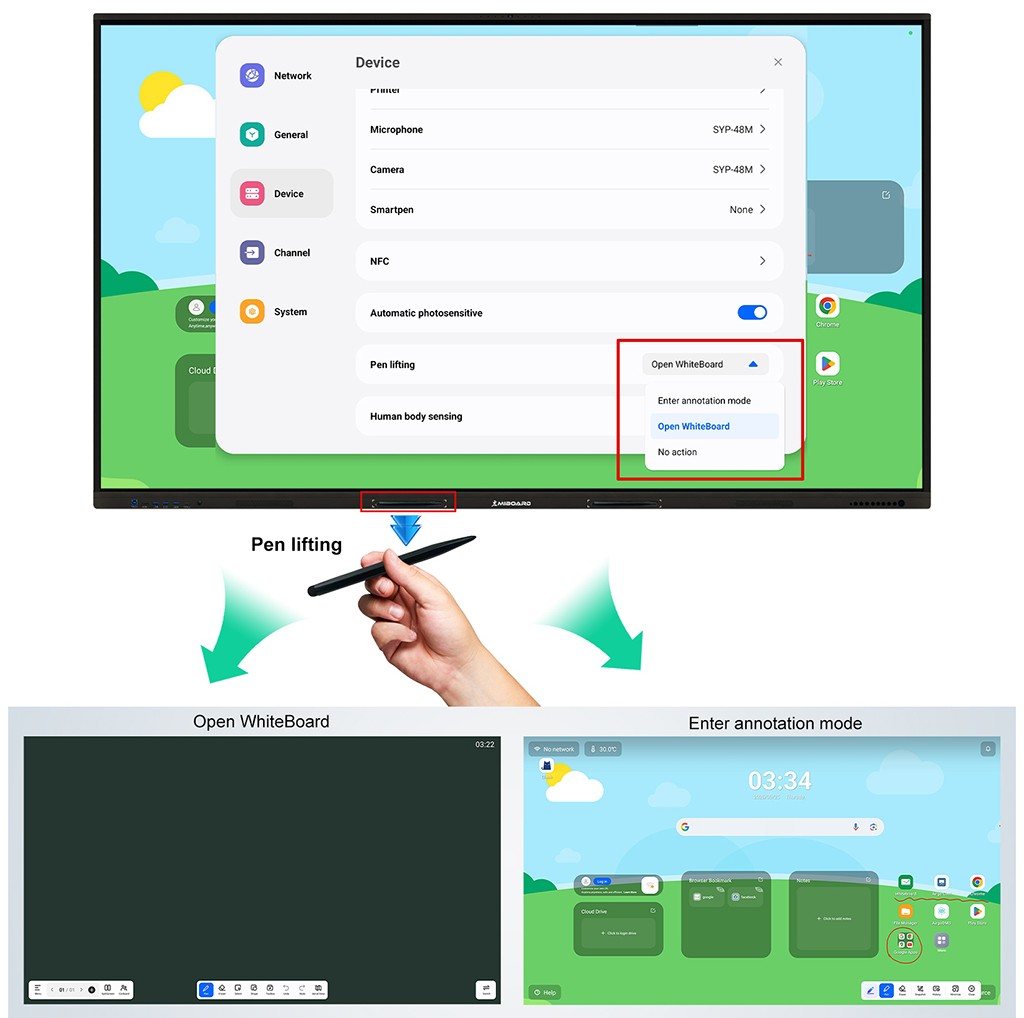

3.Pen Lifting Sensing Function
The Hall sensor board cooperated with the motherboard to achieve the pen-lifting sensing function. Turn on the device: click the pen-lifting function and select open whiteboard or enter annotation mode. You can use magnetic passive pen in the pen slot to quickly open whiteboard or enter annotation mode .

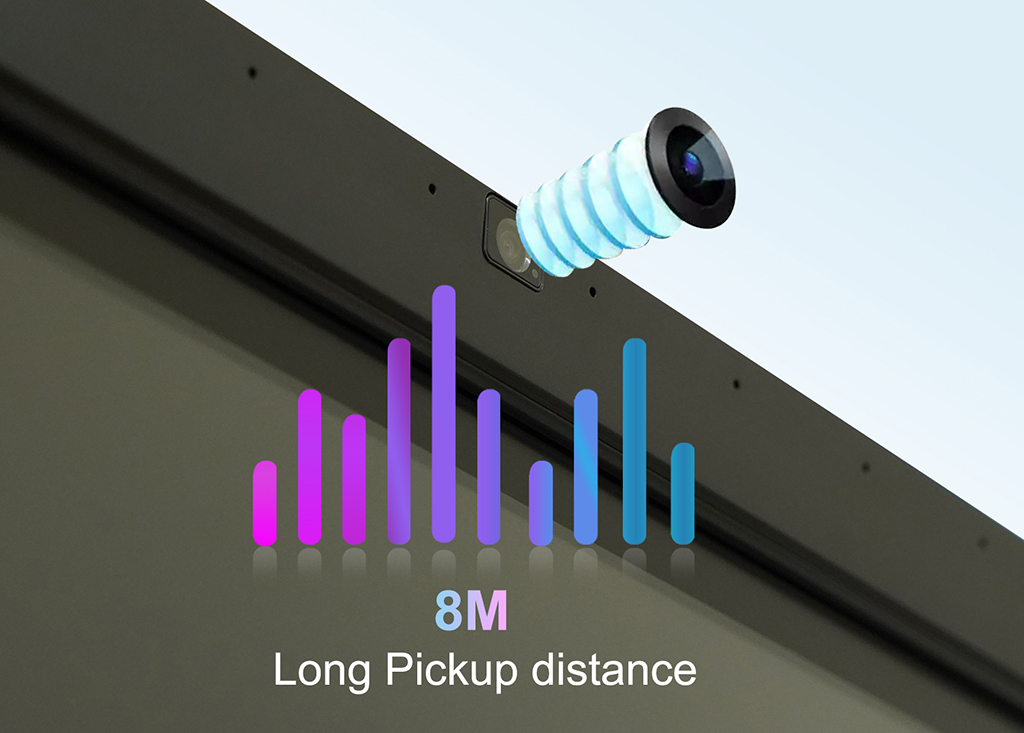

5. 48MP AI Camera auto focus and 8 Array microphone
6. NFC function
NFC function for locking or unlocking screen. Teacher can use NFC card
or mobile phone to lock or unlock screen freely, so that student can
not operate the IFP randomly.
Users can use NFC card to Shutdown, Boot, Lock Screen, Wakeup, Unlock and Enable touch.

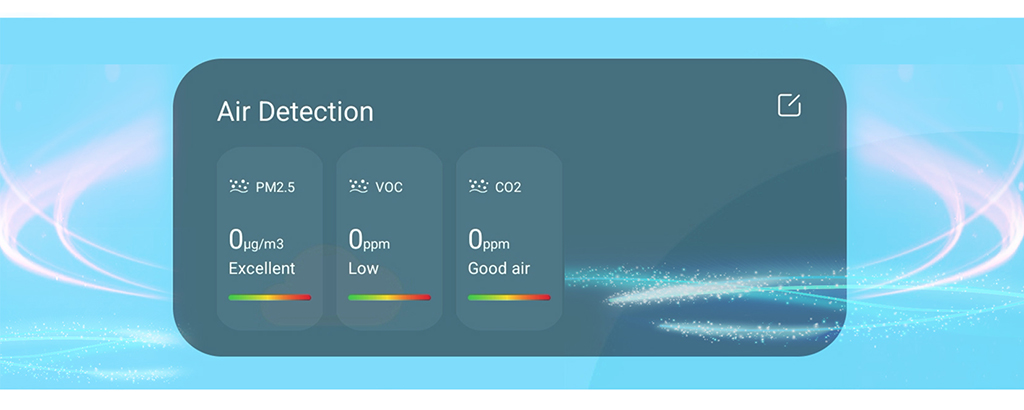

7. Air quality Sensor Air quality Sensor
With air quality sensor, users can monitor the PM2.5, VOC, CO2 instantly.
Three years limited warranty. We always send some spare parts together with your order, and we also provide video training and online traing to our customers. We provide 7*24 hours technical support by phone, email, Whatsapp and so on. Customers will rest assure to use our product.
1.Q: Can you do OEM/ODM to us?
A: Yes, we are factory.
2.Q: What is your minimum order quantity (MOQ)?
A: We accept any quantity of your order.

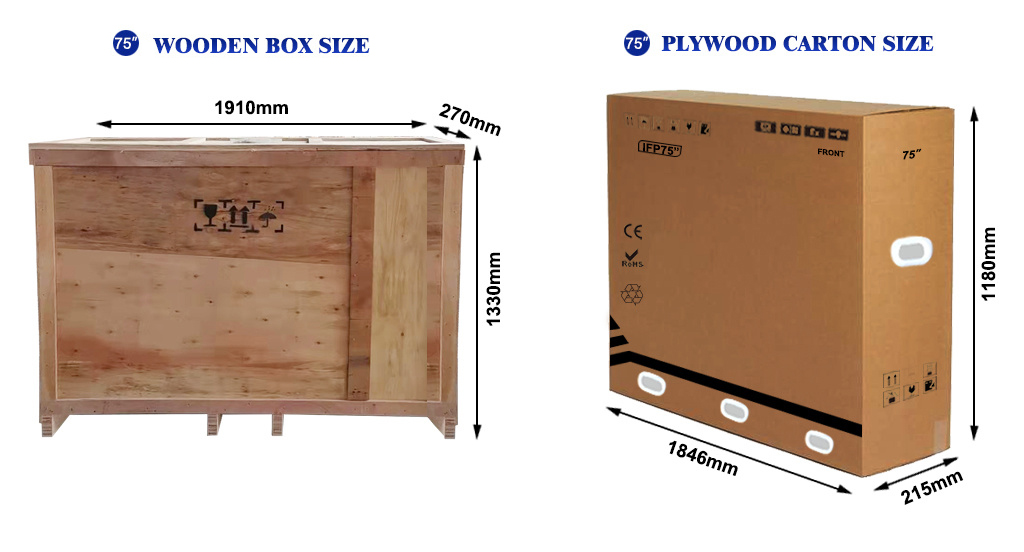

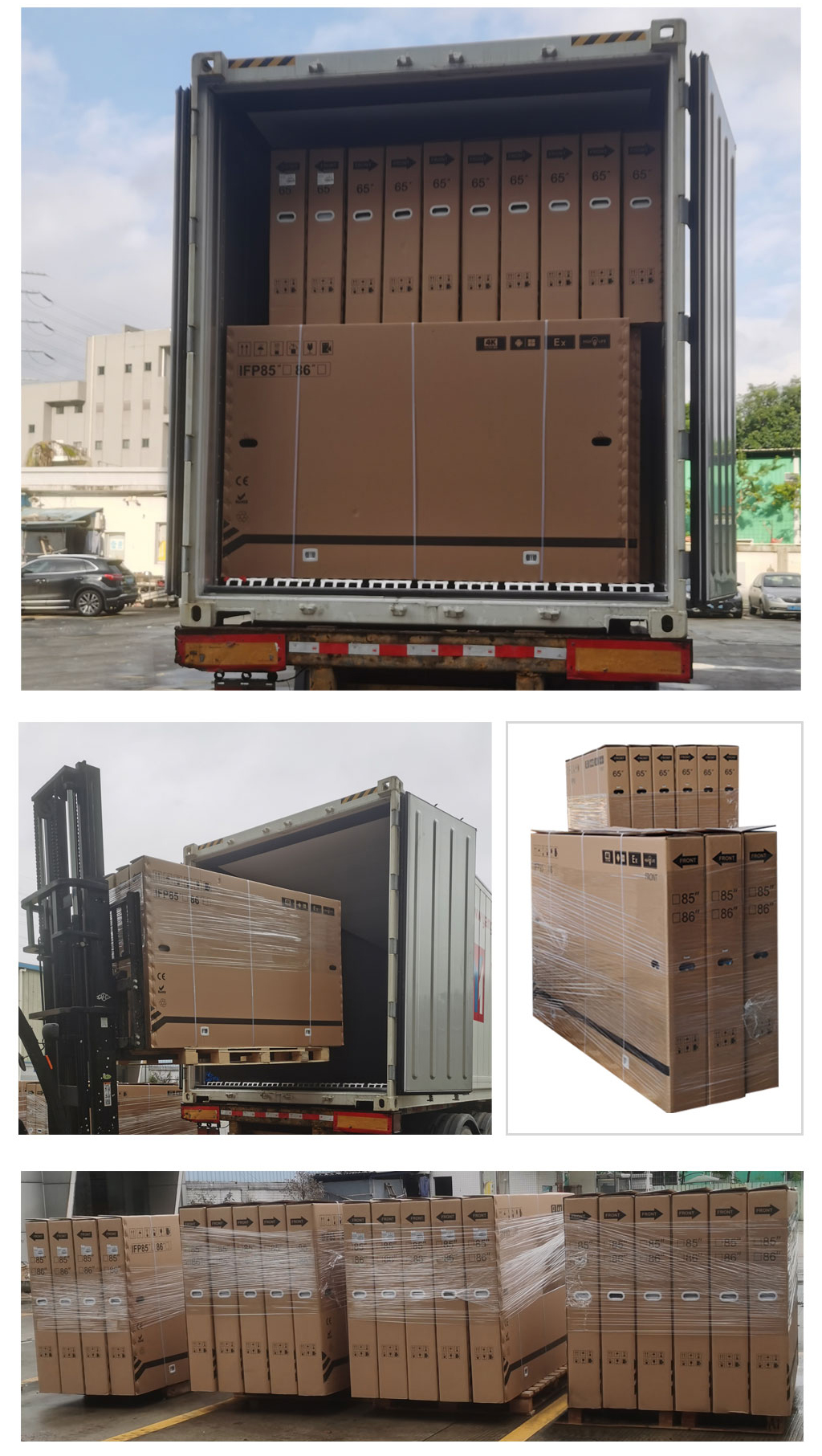

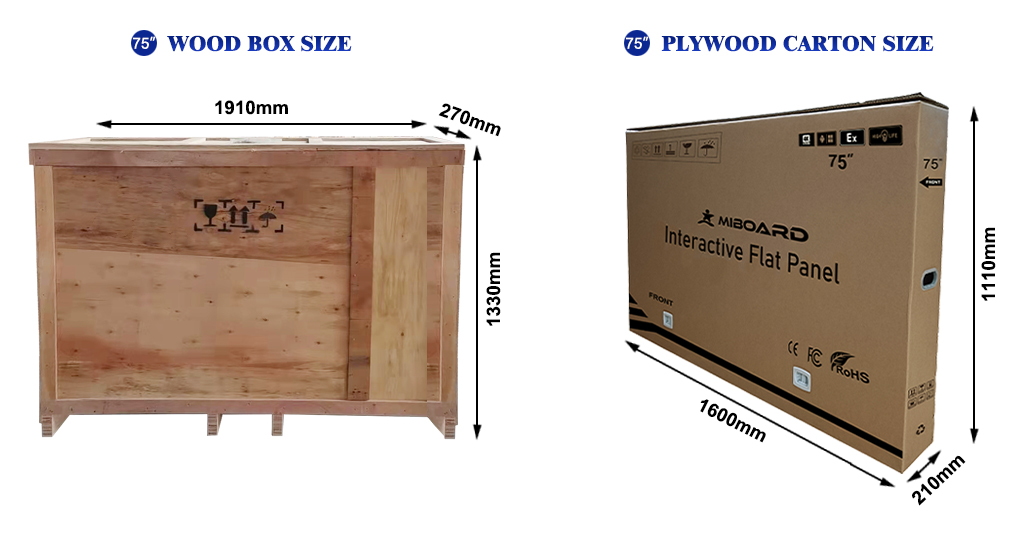

3.Q: What packaging options do you have?
A: We offer paper carton, wooden package, pallet package according to your shipment requirements.
4.Q: How long is the delivery time?
A:
Normally our delivery time is about 7-10 days according to the quantity
that you order. If you need urgently, we can try to delivery faster.
5.Q: What are your terms of payment?
A: We accept TT Advanced, Letter of credit, document of payment and so on.
6.Q: How do you guarantee quality?
A:
We also send some spare parts together with your order. We always try
to do strict QC testing and long time high temperature aging.
7.Q: Hong long is the warranty for your products?
A: We provide 3 years warranty.
