MIBoard IFP V14.V2
MiBoard IFP V14.V2 is an interactive touch screen, which uses infrared technology. It replaces projector and
traditional interactive whiteboard. It creates smooth and natual writing experience.
Dual OS, Windows and Android
Users can switch between Windows and Android OS freeely. It uses 8 cores A55 CPU, it has greatly improved the performance.
User can run all kinds of app smoothly.
Integrated TranScreen Software
Transcreen defaultly supports mirroring Windows, Android to IPF up to 4
screens at the same time. It can customize up to 9 screens.
It
allows students to share theirthoughts and ideas wirelessly from their
portable devices (laptop or Smart Phone). Audience or students can
remote control the
IFP from their laptop or smart phone.
Mirror mobile phone by NFC easily
Users just need to install the Transcreen app in the mobile phone, and
then close to the NFC, it will mirror mobile phone to IFP directly.
Multi-Users Management
Manage multiple users with support for up to 5 individuals, each enjoying customized options.
Integrated with DMS Remote Management APP, Manager can remote manager MiBoard IFP from anywhere. It can save a lot of time and money to
do some maintain. Manager can remote manage the IFP apps, and also can remote install or uninstall app for the IFP. Manager can remote control
the deskop of IFP, changing wallpaper, setting schedule for turning on or off and so on.
Intergrated with strong Whiteboard Software
Four students can write on the board at the same time without effecting with each other.
Dual thick tips of stylus
With dual tips of stylus, teacher can write two colors with different thickness by the stylus.
| Item | Description | IFP65 | |||
| Panel | Diagonal Size | 65" | |||
| Backlight Type | D-LED | ||||
| Aspect Ratio | 16:09 | ||||

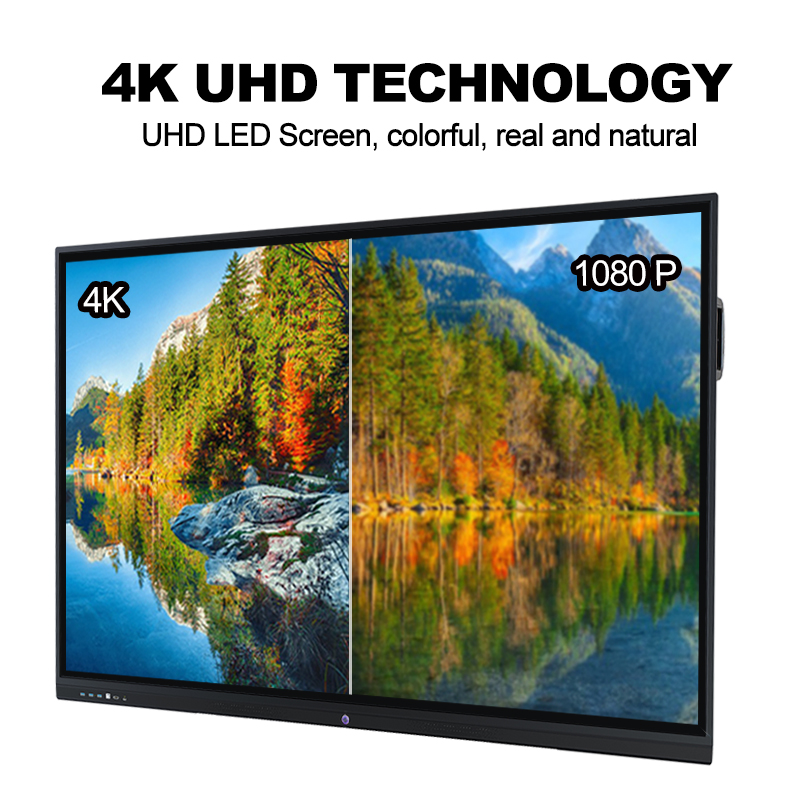

| Resolution | 3840*2160 | ||||
| Brightness(typ)/(min) | 350 | ||||
| Display Size(mm) | 1,428*803 | ||||
| Contrast Ratio (typ)/(min) | 5000:1 | ||||
| Response Time(typ)/(min) | 5ms | ||||
| Depth of Color | 10 bit | ||||
| Viewing Angle | 178° | ||||
| Life time | ≥100,000 hours | ||||
| Touch | Touch Technology | High-precision Infrared Technology | |||
| Glass | 4mm Anti-glare toughened glass | ||||
| Touch Points | 40 Points(50 Points Optional) | ||||
| Touch Accuracy | ≤1mm | ||||
| Response time | <8ms | ||||
| Android | CPU | 8*A55 | |||
| GPU | Quad-core MaliG52 600MHz | ||||
| RAM | 4GB (8GB Option) | ||||
| eMMC | 32GB (64/128GB Option) | ||||
| LAN | Wired LAN: RJ45 IN 100M +RJ45 out 100M | ||||
| Version | Android 14.0 | ||||
| Wi-Fi | Wi-Fi 5 2.4G+5G+Bluetooth5.0 (Wi-Fi 6 Option) | ||||
| Chipset | GK6780V100 | ||||
| Video Input | HDMI | MAX 3840x2160@120Hz | |||
| HDMI Version 2.0 | |||||
| HDCP Version 1.1/1.3/1.4/2.2 | |||||
| Power | Power Supply | 110-240V 50/60 Hz | |||
| Power Consumption | ≤150W | ||||
| Ports | Back Side Ports | HDMI In*2, USB2.0 Type-A (for Android)*1, USB3.0 Type-A*1, USB 2.0 Type-B (for Touch)*1, TF Card*1,MIC In*1, RS232*1, RJ45 In*1, RJ45 Out*1, HDMI Out*1, VGA In*1, DP*1, COAX*1, VGA Audio*1, EAROHONE*1. | |||
| Front Ports | HDMl IN*1, USB 3.0 Type-B*1, USB 3.0 Type-A*3, USB 3.0 Type-C*1 | ||||
| Size | Panel Size(mm) | 1484*89*890 | |||
| Package Size(mm) | 1600*205*1001 | ||||
| Weight | Net Weight(KG) | 37.2 | |||
| Gross Weight(KG) | 46 | ||||
| Speaker | Audio Out Power 15W*2 8Ω (Speaker:20W, Subwoofer: 20W Option) | ||||
| Camera (Optional) | 4K AI face&voice tracking camera | ||||
| Microphone (Optional) | 8 Built-in High Reception Microphone | ||||
| Physical Shortcut Buttons (Optional) | Touch Lock, Setting, Home, Screen Record, Eye Care, Volume Up, Volume Down | ||||
| Environment | Working Temperature - 0ºC~40ºC, Operational humidity≤80% RH, Storage temperature:-10ºC~60ºC, Altitude Below 5000 meters. | ||||

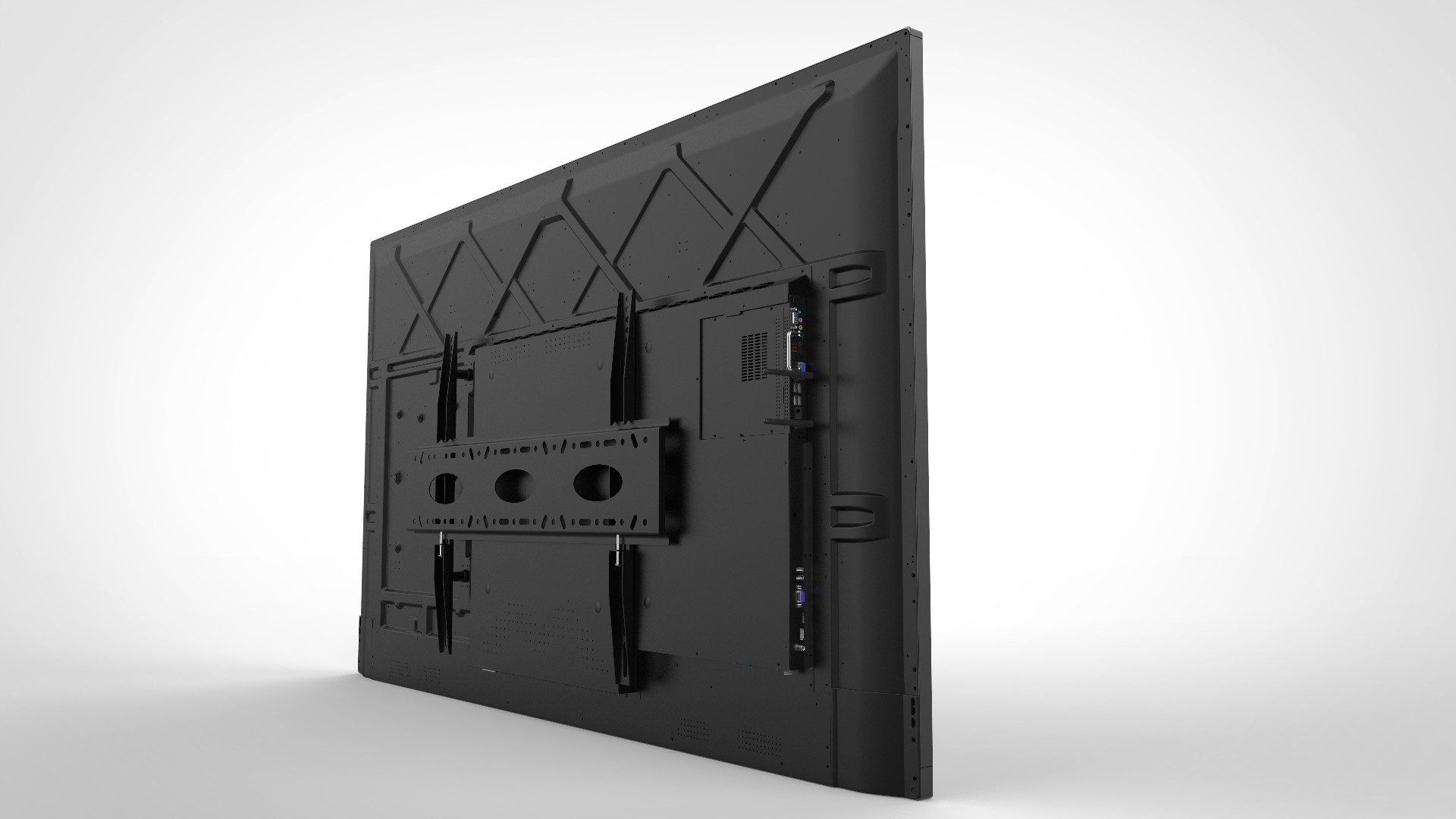

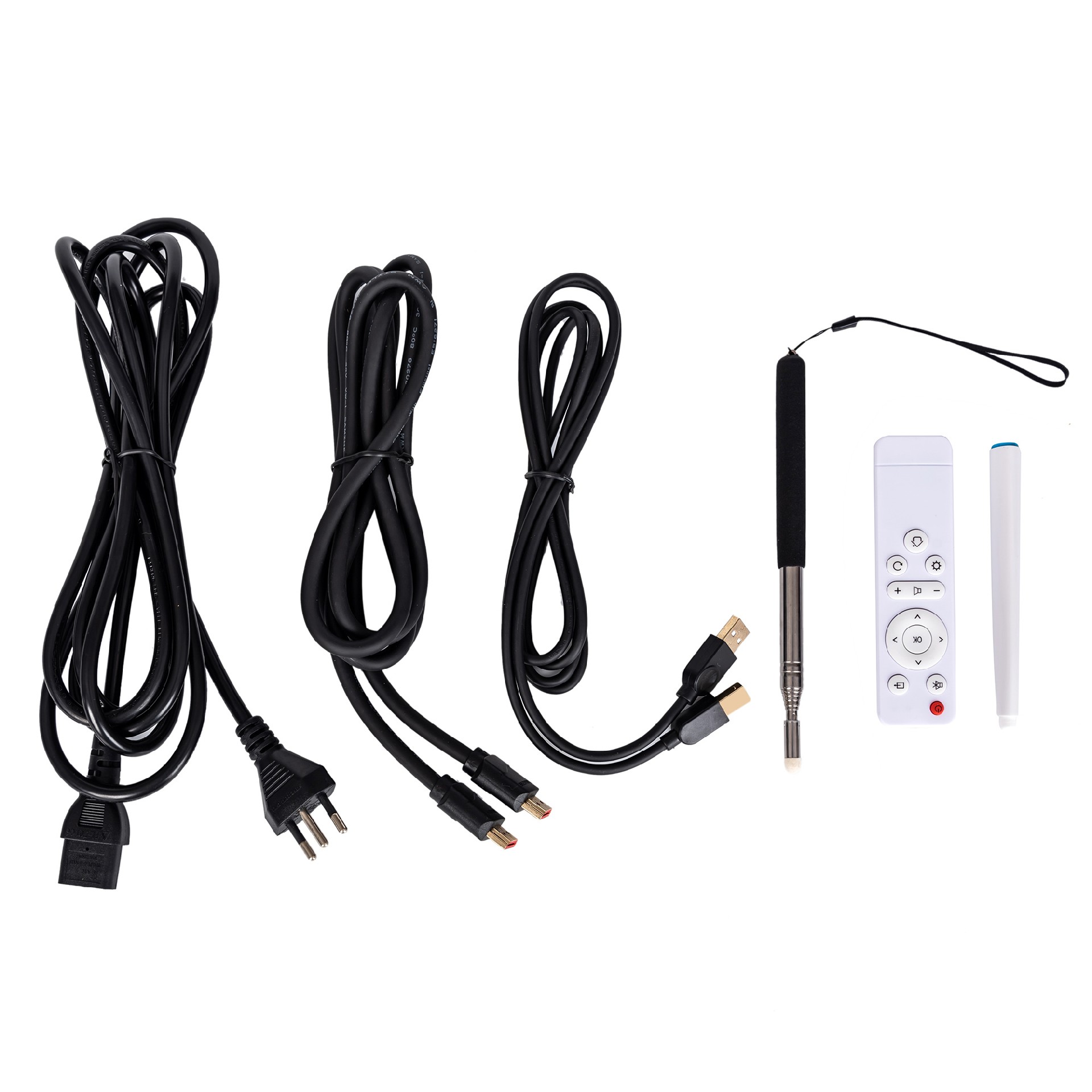

| Accessories | Remote Control*1, Power Cord*1(3m), HDMI cable(2m), Touch Cable*1 (2m), Passive pen*1, Wall mount*1 | ||||
| Warranty | 3 years return workshop | ||||
| Special Features | Built with Google Play, Enable Annotation in all Channels, Screenshot, Gesture Eraser, Smart Writing, Dual Pens with two colors writing, Video conference support H323/H265. | ||||
| Components | Power Cable, HDMI Cable , Touch Cable, Controller, Wall Hanger, Passive Pen. | ||||
| OPS(Optional) | i5/i7, 6-13th Gen, RAM 8-32GB, SSD 256GB-1TB, Windows 11 Genius Version, Wi-Fi 6 , Bluetooth 5.1/5.2 , LAN 1000MB | ||||

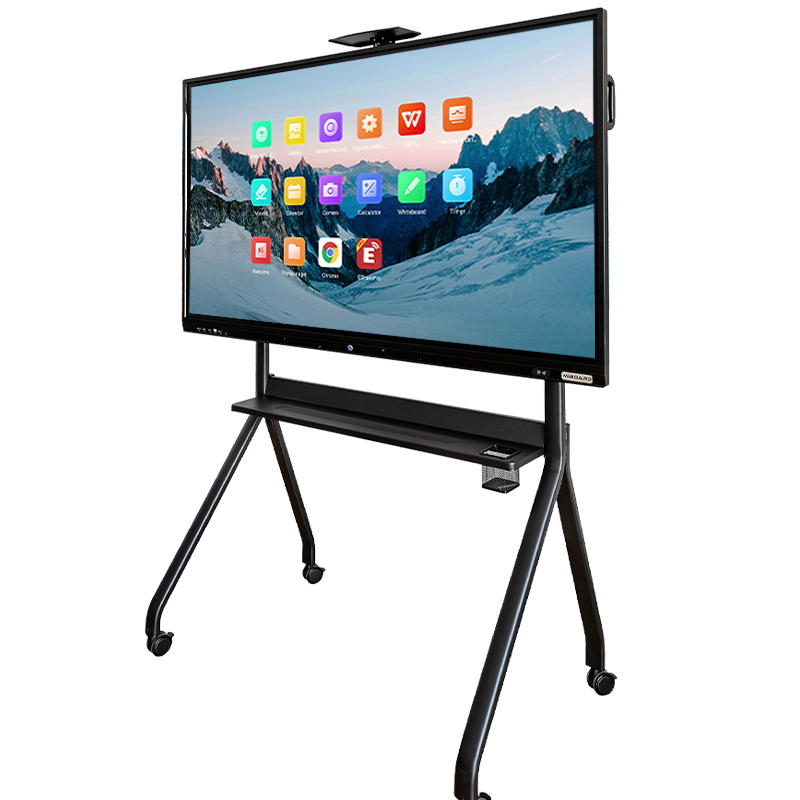

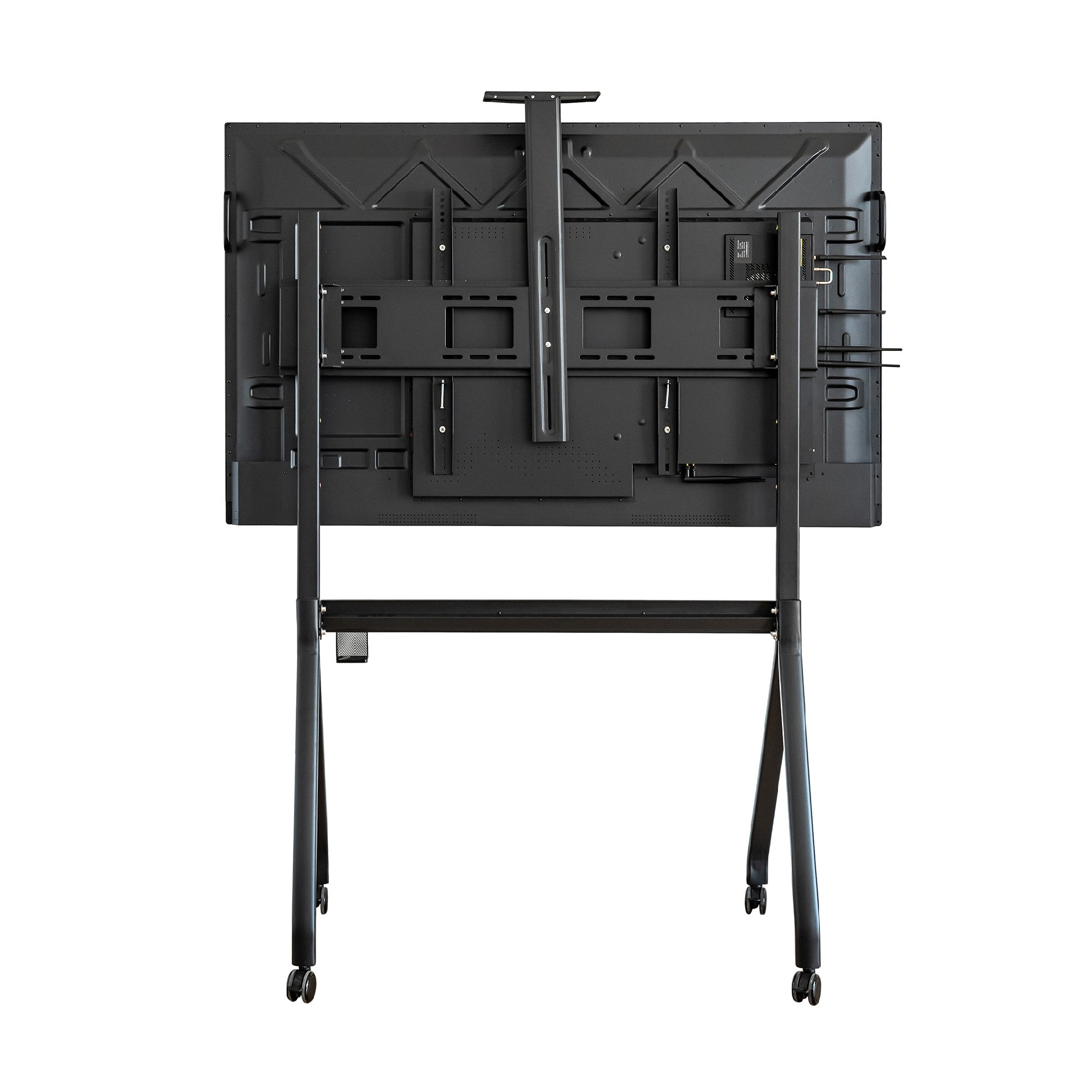

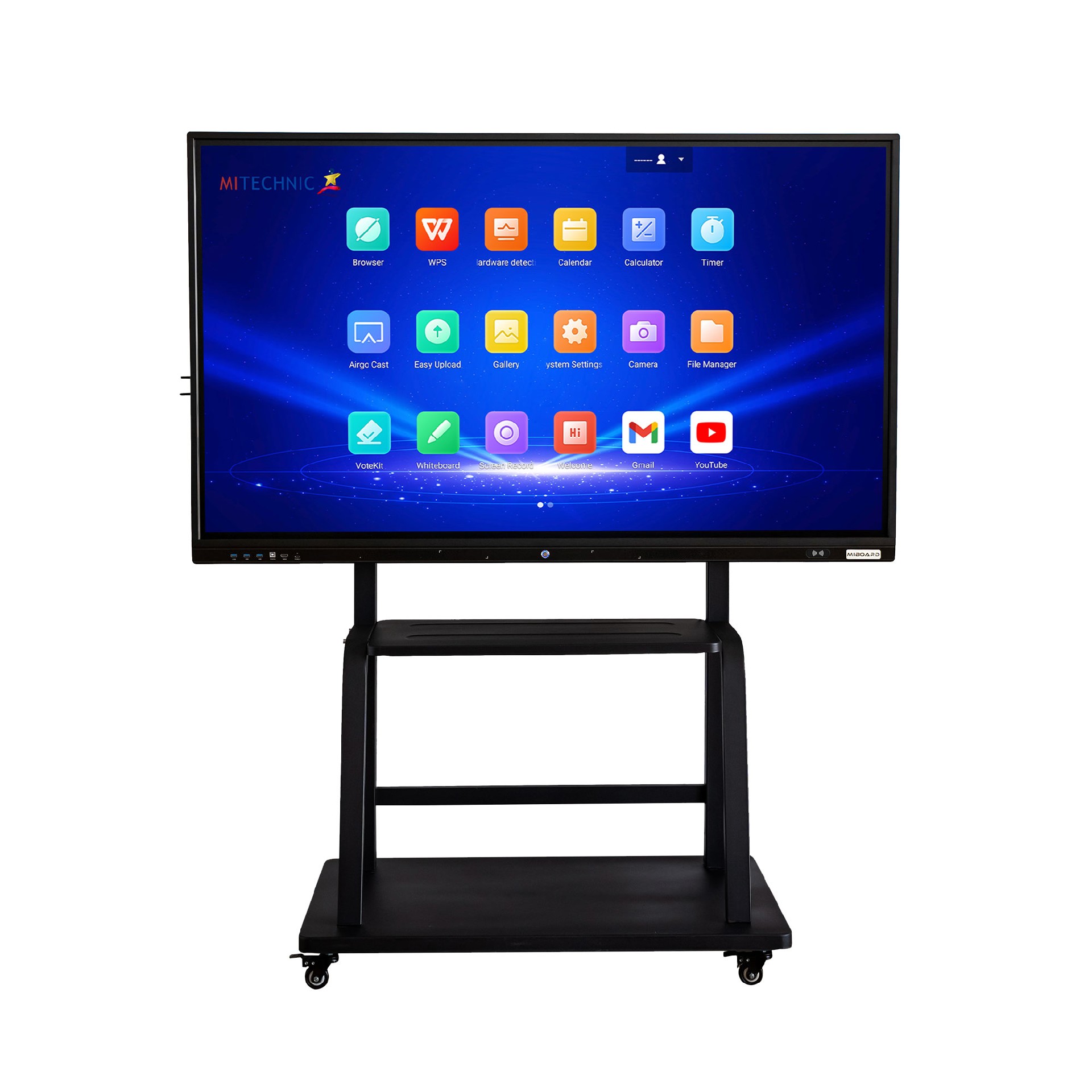

| Optional Components | Movable Stand, Webcam, Pen with two tips, OPS , Pointer, Microphone, Camera, Speaker. | ||||
1.We use original grade A screen. It has not brightened dot and fleck.
2. We use original Tcom boards to make sure it has better display and better quality.
The following is the third party Tcon board. It can not display as
perfect as the original one and it is easy to be broken.
The following is from the third party Tcon board.
3. We can do OEM/ODM to our resellers if our customer order certain
quantity. We can customize or design new carton for our customer.
4. We can customize the frame color, we can make black, grey, white, or other colors. We can customize power button shape and position.
We can
customize the logo and paste on the frame.
5. With physical front shortcut buttons, such as adjusting volume, main menu, setting, it will be much conevient for users.
1. 20W Subwoofer for better sound quality
2. 65W USB-C fast charging for laptop.
3. Support 50 points touch points for Windows
4. NFC function for locking or unlocking screen. Teacher can use NFC card or mobile phone to lock or unlock screen freely,
so that student can
not operate the IFP randomly.
Users can use NFC card to Shutdown, Boot, Lock Screen, Wakeup, Unlock and Enable touch.
Three years limited warranty. We always send some spare parts together with your order, and we also provide video training and online
traing to our customers. We provide 7*24 hours technical support by phone, email, Whatsapp and so on. Customers will rest assure to
use our product.
1.Q: Can you do OEM/ODM to us?
A: Yes, we are factory.
2.Q: What is your minimum order quantity (MOQ)?
A: We accept any quantity of your order.

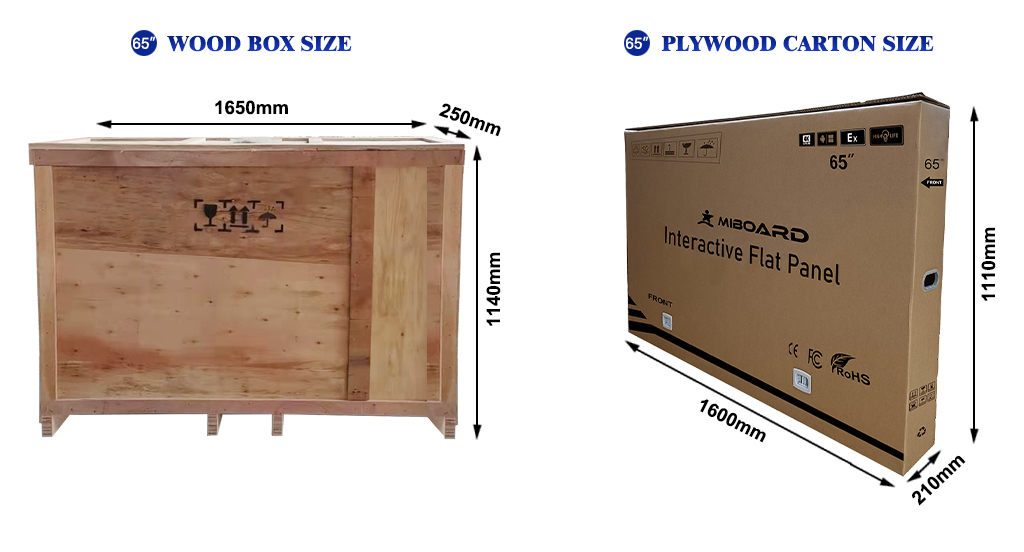

3.Q: What packaging options do you have?
A: We offer paper carton, wooden package, pallet package according to your shipment requirements.
4.Q: How long is the delivery time?
A:
Normally our delivery time is about 7-10 days according to the quantity
that you order. If you need urgently, we can try to delivery faster.
5.Q: What are your terms of payment?
A: We accept TT Advanced, Letter of credit, document of payment and so on.
6.Q: How do you guarantee quality?
A:
We also send some spare parts together with your order. We always try
to do strict QC testing and long time high temperature aging.
7.Q: Hong long is the warranty for your products?
A: We provide 3 years warranty.
