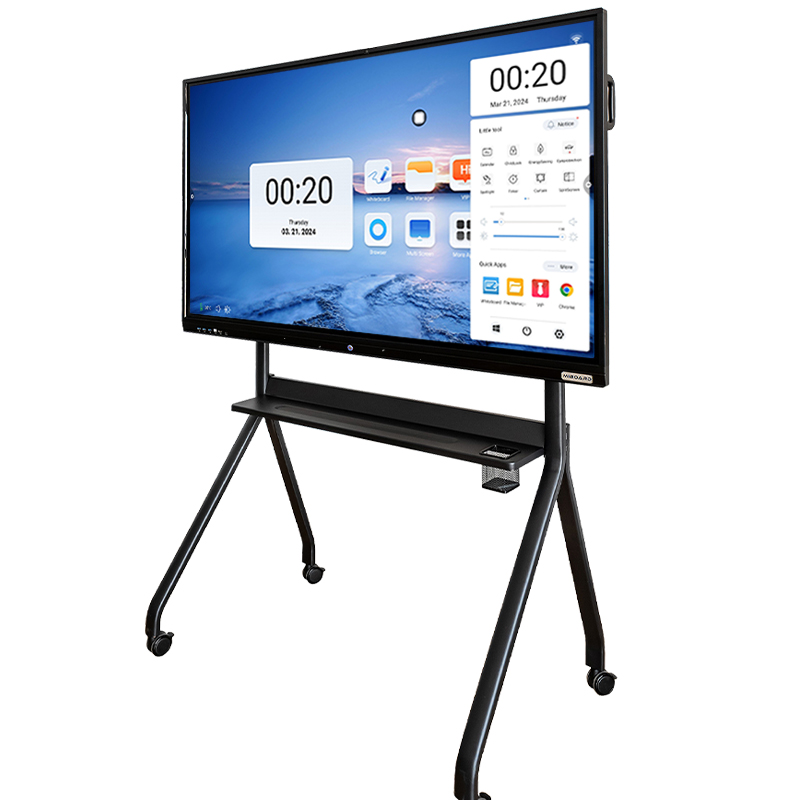

MIBoard IFP V14.X4
MiBoard IFP V14.X4 is an interactive touch screen, which uses infrared technology. It replaces projector and
traditional interactive whiteboard. It creates smooth and natual writing experience.
Dual OS, Windows and Android
Users can switch between Windows and Android OS freeely. It uses 8 cores A55 CPU, it has greatly improved the performance.
User can run all kinds of app smoothly.
Integrated TranScreen Software

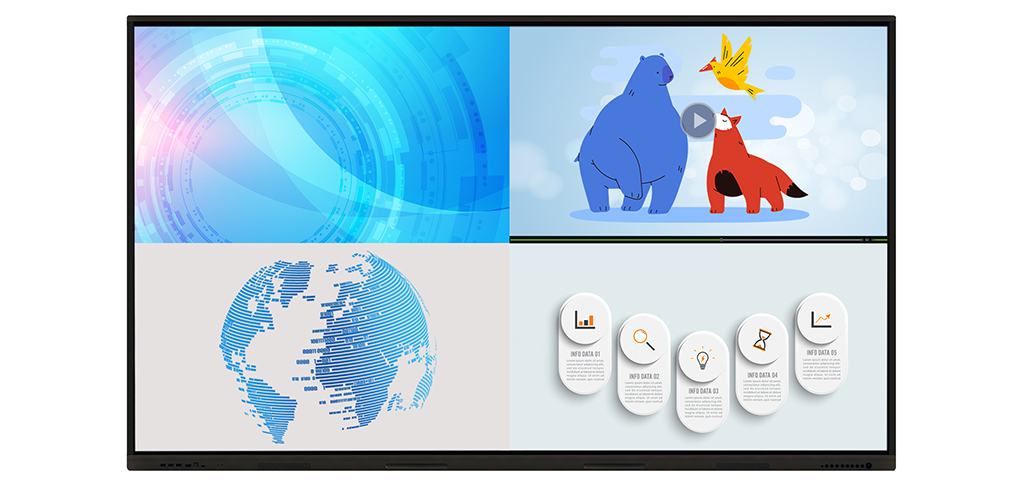

Transcreen defaultly supports mirroring Windows, Android to IPF up to 4
screens at the same time. It can customize up to 9 screens.
It
allows students to share theirthoughts and ideas wirelessly from their
portable devices (laptop or Smart Phone). Audience or students can
remote control the
IFP from their laptop or smart phone.

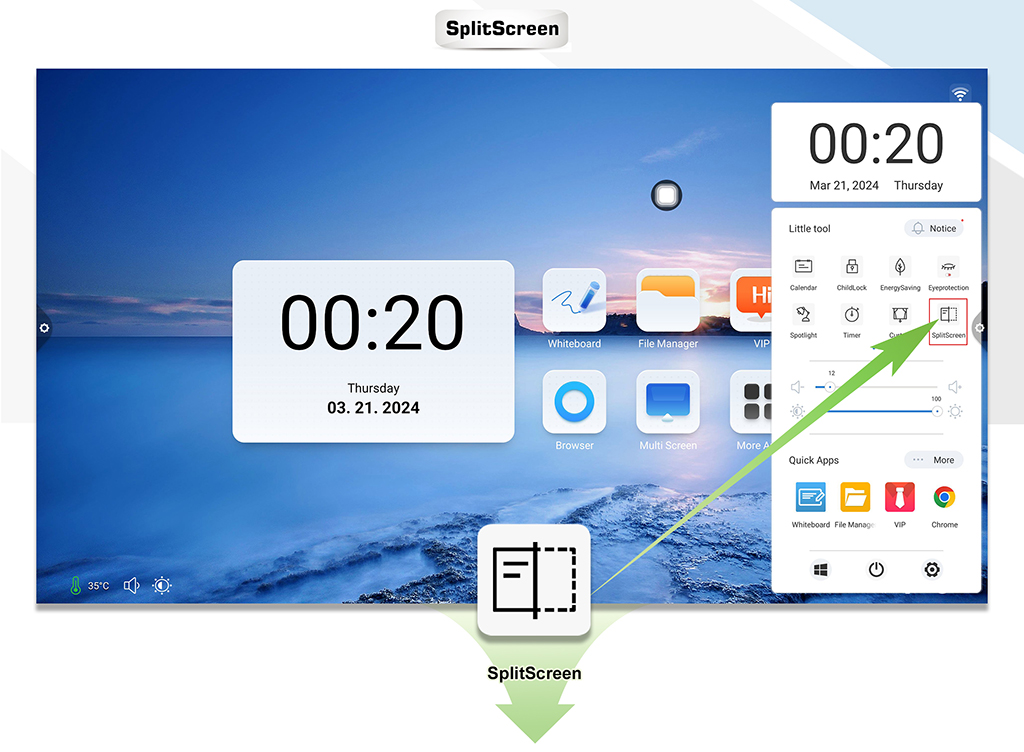

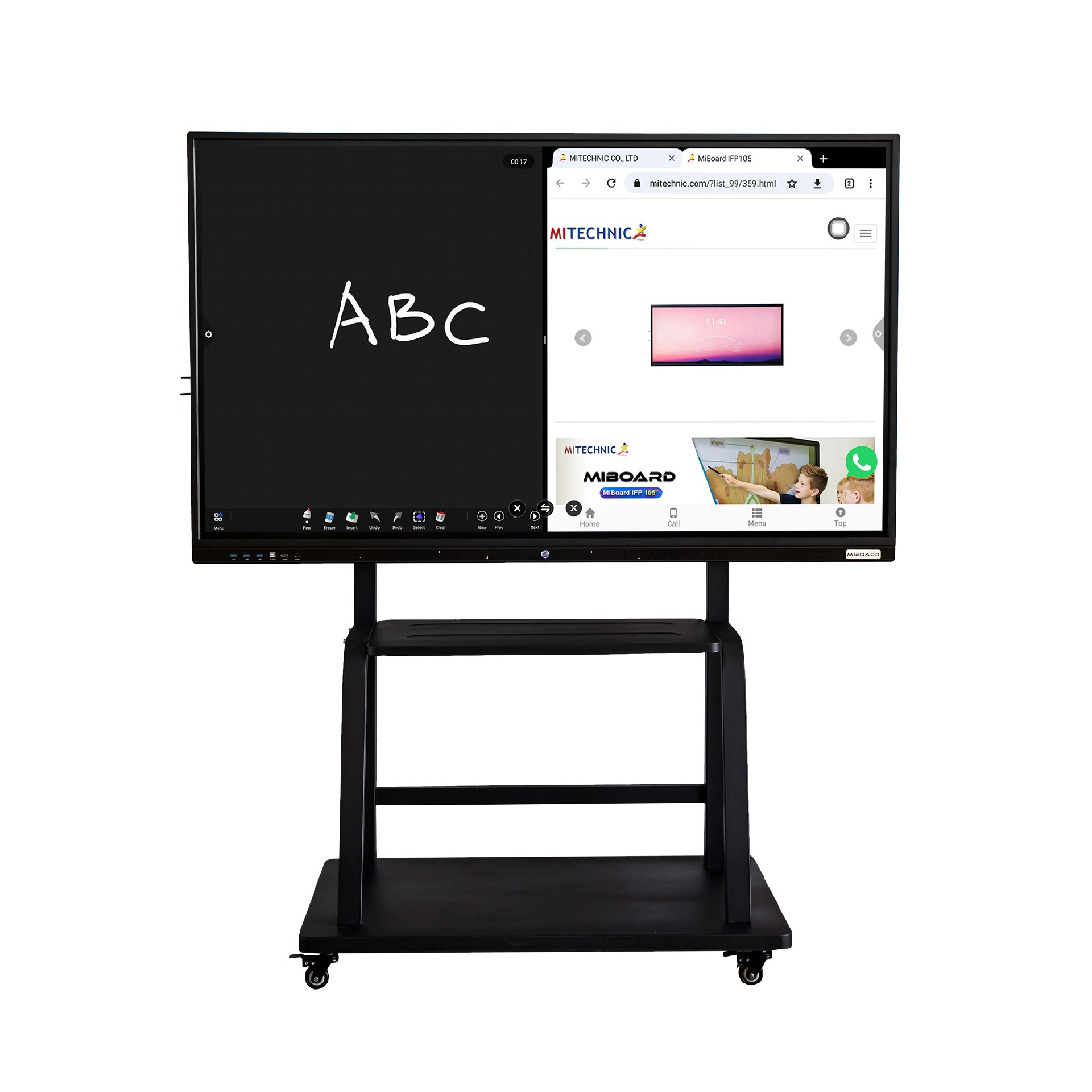

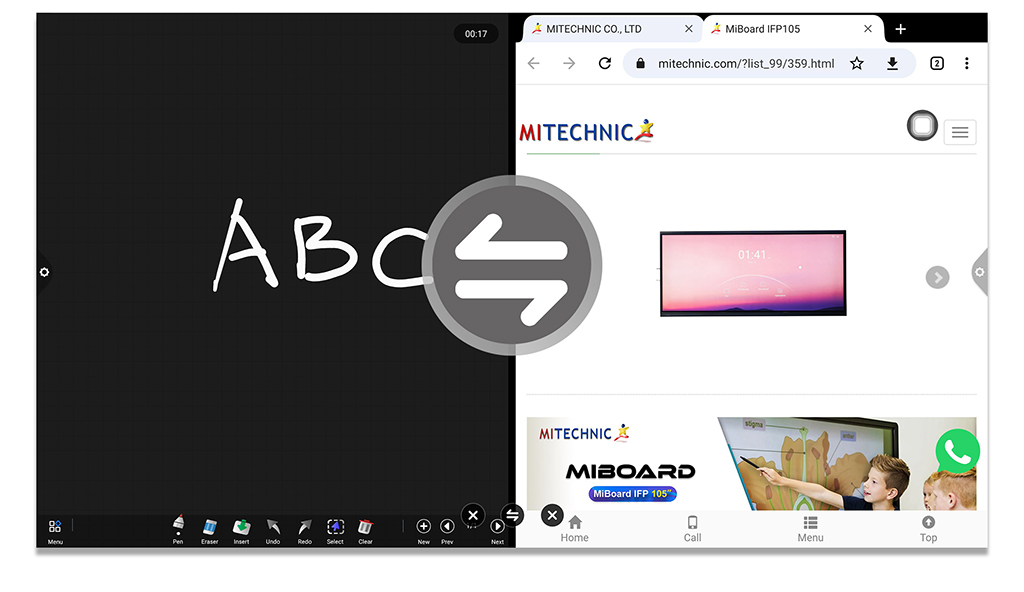

User can divide the screen into two parts and run two tasks at the same time.

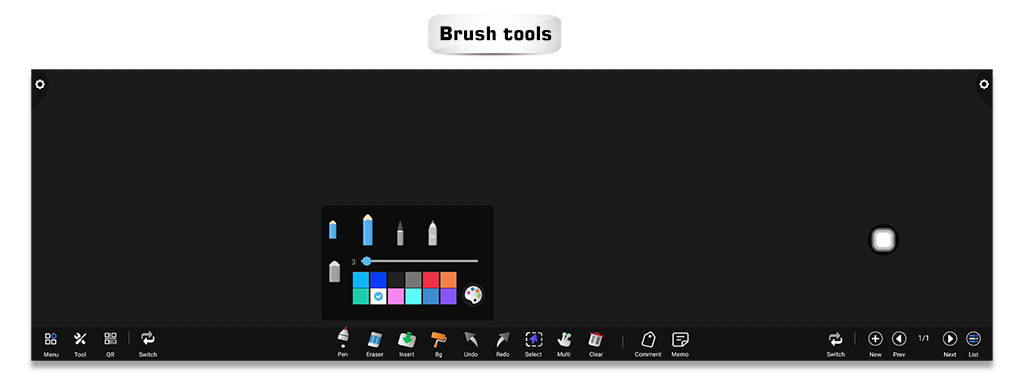

Two brushes can set the fine and fine pens separately, and click on the selected brush again to adjust the brush style. The types of the pen include brush, original handwriting pen, and AI pen.
Brush and original handwriting can set the color and thickness, as well as text recognition brush and graphics recognition brush two intelligence, also support users to customize the color, click customized .You can choose your favorite color.

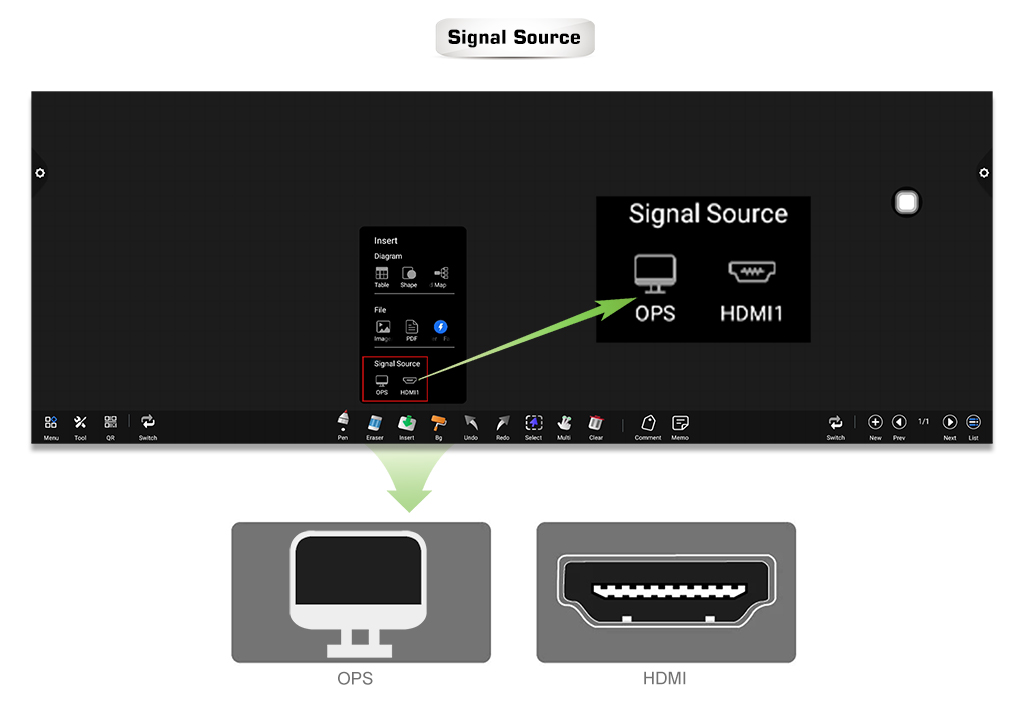

In the whiteboard software, user can insert the singal source of OPS and HDMI1. Users can do some notation on it directly.
| Item | Description | IFP86 | |||
| Panel | Diagonal Size | 86" | |||
| Backlight Type | D-LED | ||||
| Aspect Ratio | 16:09 | ||||
| Resolution | 3840*2160 | ||||
| Brightness(typ)/(min) | 480 | ||||
| Display Size(mm) | 1,892*1,064 | ||||
| Contrast Ratio (typ)/(min) | 5000:1 | ||||
| Response Time(typ)/(min) | 5ms | ||||
| Depth of Color | 10 bit | ||||
| Viewing Angle | 178° | ||||
| Life time | ≥100,000 hours | ||||
| Touch | Touch Technology | High-precision Infrared Technology | |||
| Glass | 4mm Anti-glare toughened glass | ||||
| Touch Points | 40 Points(50 Points Optional) | ||||
| Touch Accuracy | ≤1mm | ||||
| Response time | <8ms | ||||
| Android | CPU | 8*A55 1.5Ghz | |||
| GPU | Mali-G52 MC2 | ||||
| RAM | 4GB/8GB | ||||
| eMMC | 32GB/128GB | ||||
| LAN | Wired LAN: RJ45 IN 100M | ||||
| Version | Android 14.0 | ||||
| Wi-Fi | Wi-Fi 5 2.4G+5G+Bluetooth5.0 (Wi-Fi 6 Option) | ||||
| Chipset | GK6780V100 | ||||
| Power | Power Supply | 110-240V 50/60 Hz | |||
| Power Consumption | ≤330W | ||||
| Ports | Back Side Ports | HDMI In*2, HDMI OUT*1, USB2.0 Type-A (for Android)*1, USB3.0 Type-A*1, USB 2.0 Type-B*1, Earphone Out*1, RS232*1, TF CARD*1, RJ45 In*1, SPDIF*1 | |||
| Front Ports | HDMl IN*1, USB 3.0 Type-B*1, USB 3.0 Type-A*3, USB 3.0 Type-C*1 | ||||

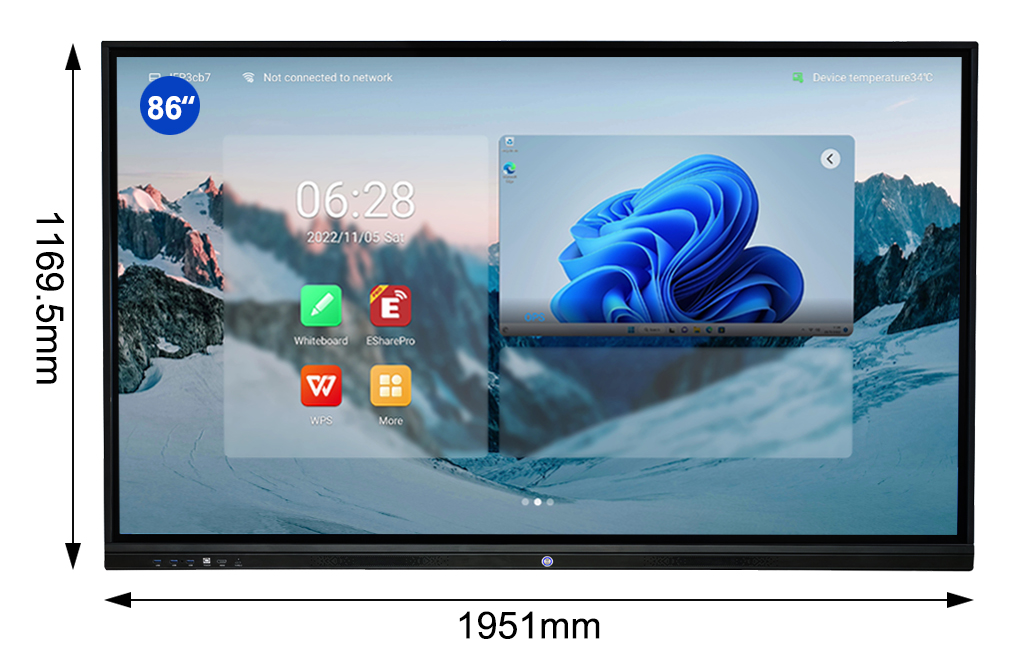

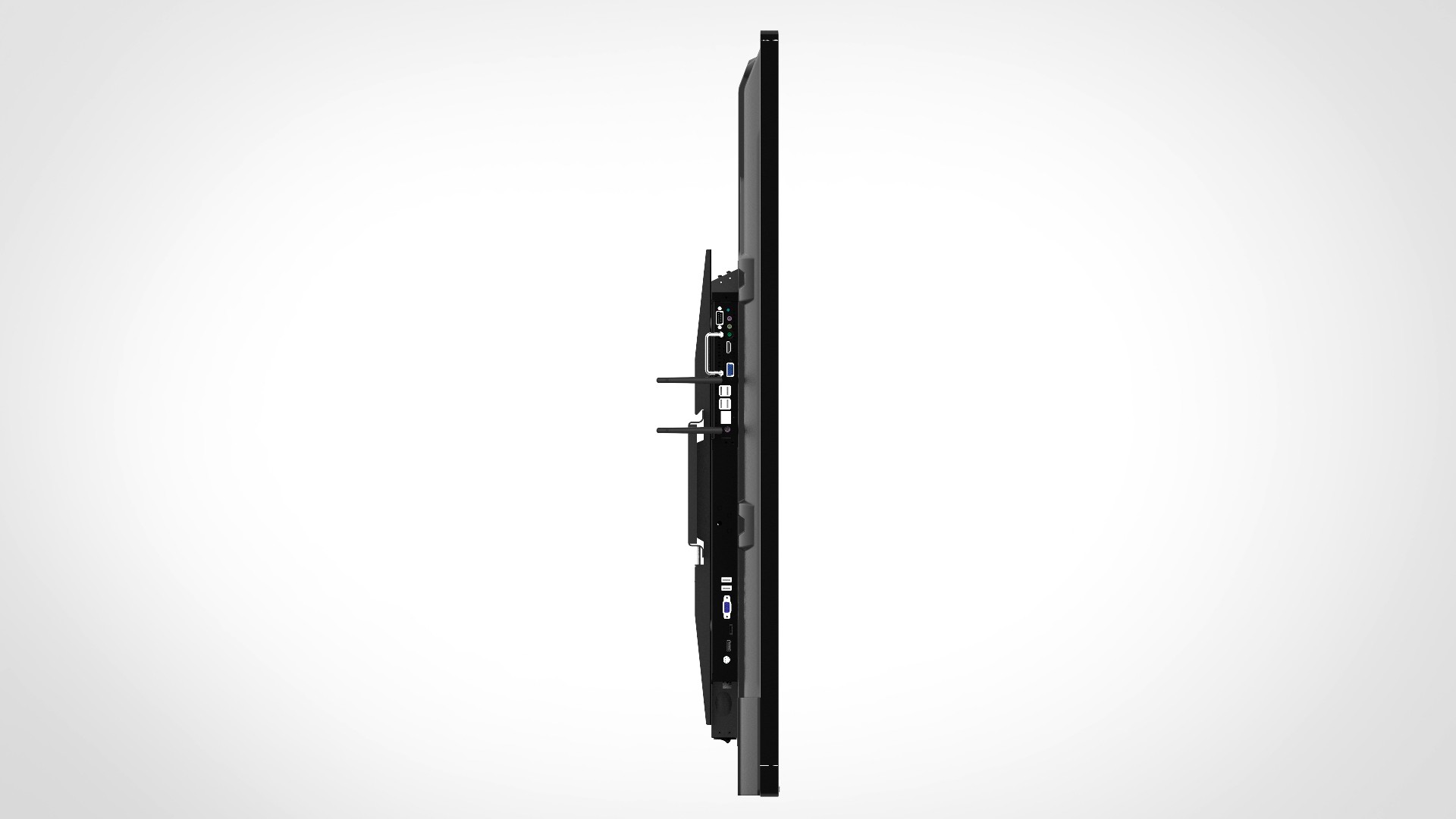

| Size | Panel Size(mm) | 1951*89*1169.5 | |||
| Package Size(mm) | 2092*215*1319 | ||||
| Weight | Net Weight(KG) | 66 | |||
| Gross Weight(KG) | 83 | ||||
| Speaker | Audio Out Power 16W*2 8Ω | ||||
| Camera (Optional) | 48 Megapixels | ||||
| Microphone (Optional) | 8 Built-in High Reception Microphone | ||||
| Physical Shortcut Buttons (Optional) | Touch Lock, Setting, Home, Screen Record, Eye Care, Volume Up, Volume Down | ||||
| Environment | Working Temperature - 0ºC~40ºC, Operational humidity≤80% RH, Storage temperature:-10ºC~60ºC, Altitude Below 5000 meters. | ||||

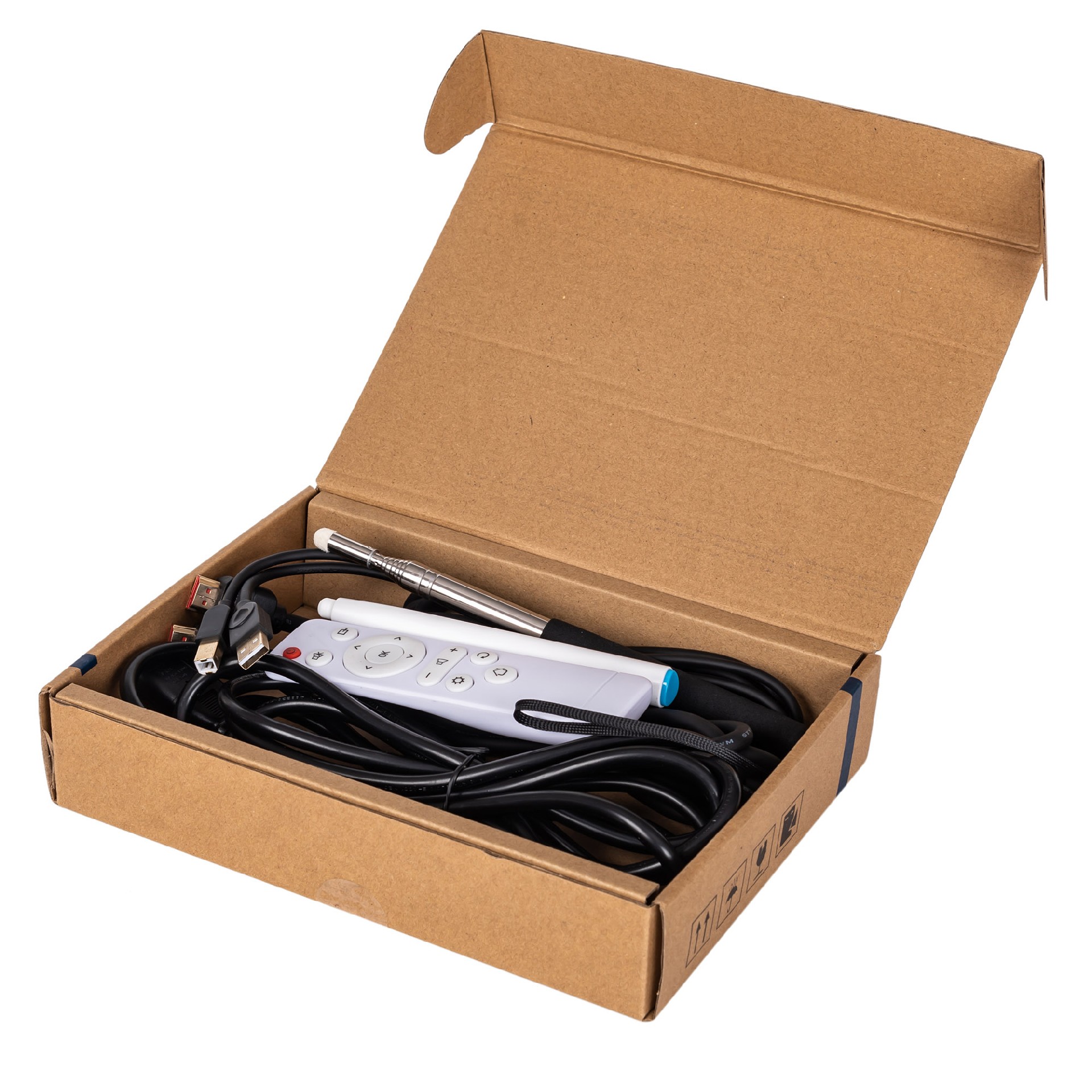

| Accessories | Remote Control*1, Power Cord*1(3m), HDMI cable(2m), Touch Cable*1 (2m), Passive pen*1, Wall mount*1 | ||||
| Warranty | 3 years return workshop | ||||
| Special Features | Built with Google Play, Enable Annotation in all Channels, Screenshot, Gesture Eraser, Smart Writing, Dual Pens with two colors writing, Video conference support H323/H265. | ||||
| Components | Power Cable, HDMI Cable , Touch Cable, Controller, Wall Hanger, Passive Pen. | ||||
| OPS(Optional) | CPU:I3-I7, RAM: 8GB-32GB, SSD: 128GB-1T, OS: Windows 10/ Windows 11 Home/ Pro, WIFI: Dual Band 2.4G/5G, Bluetooth 4.2, LAN 1000MB. | ||||

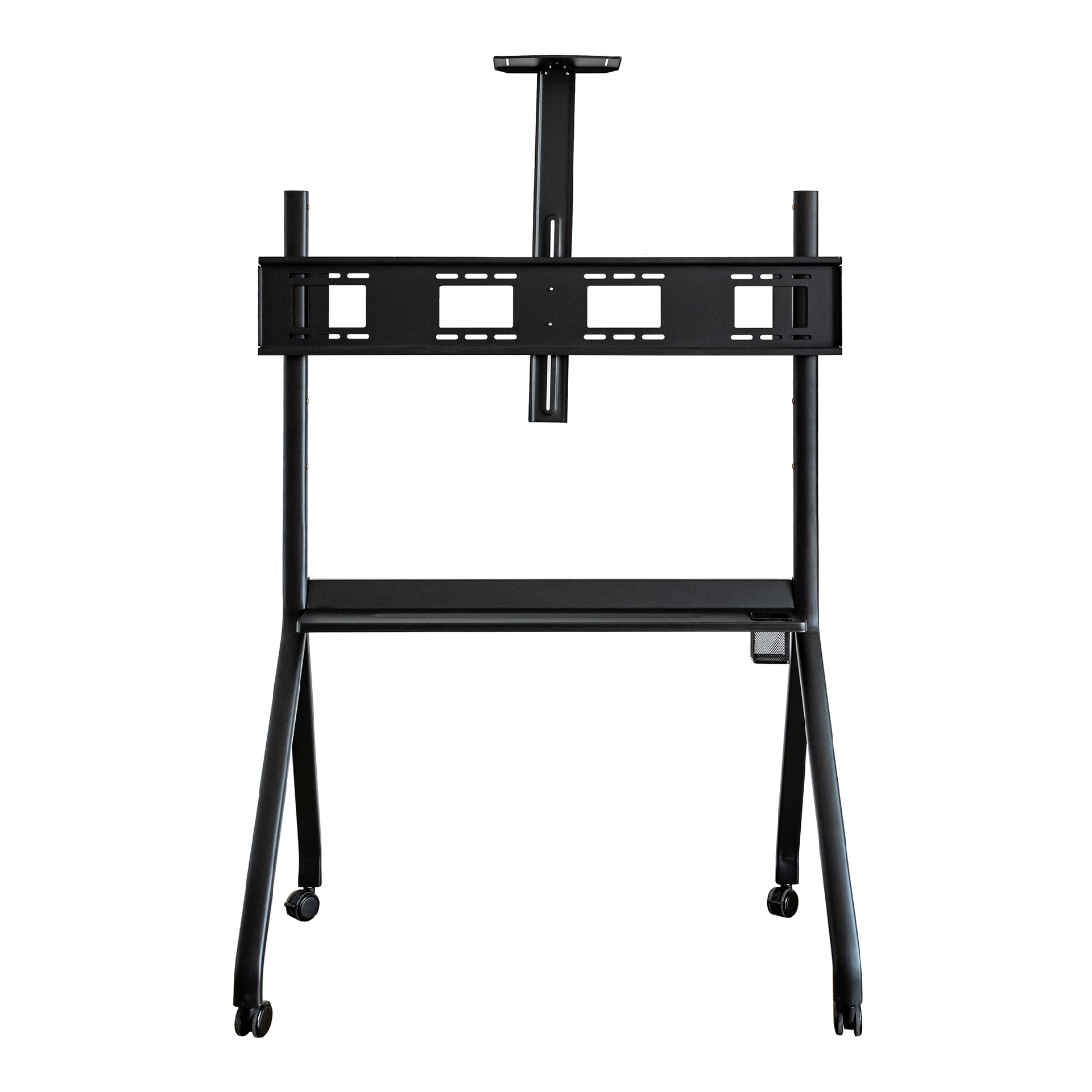

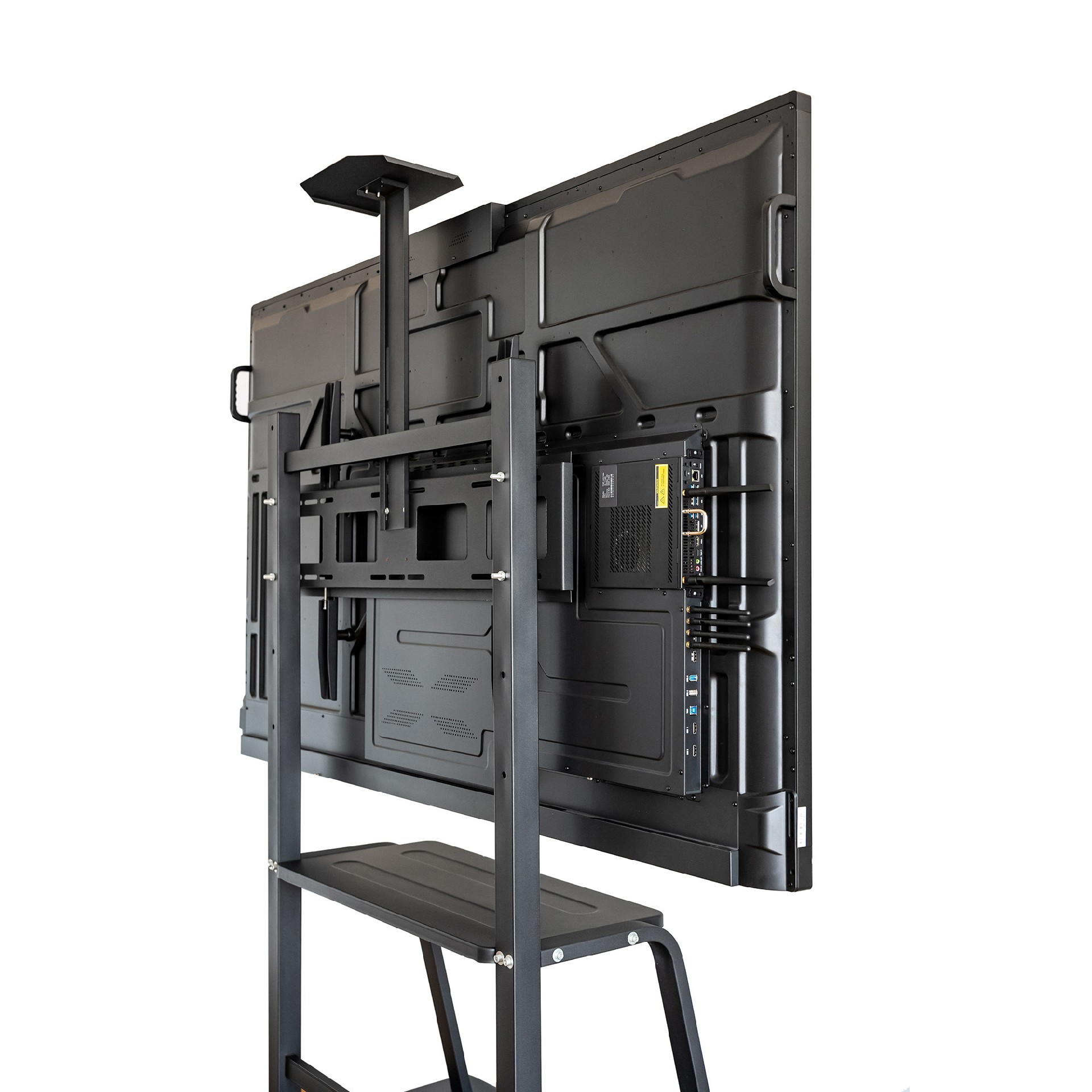

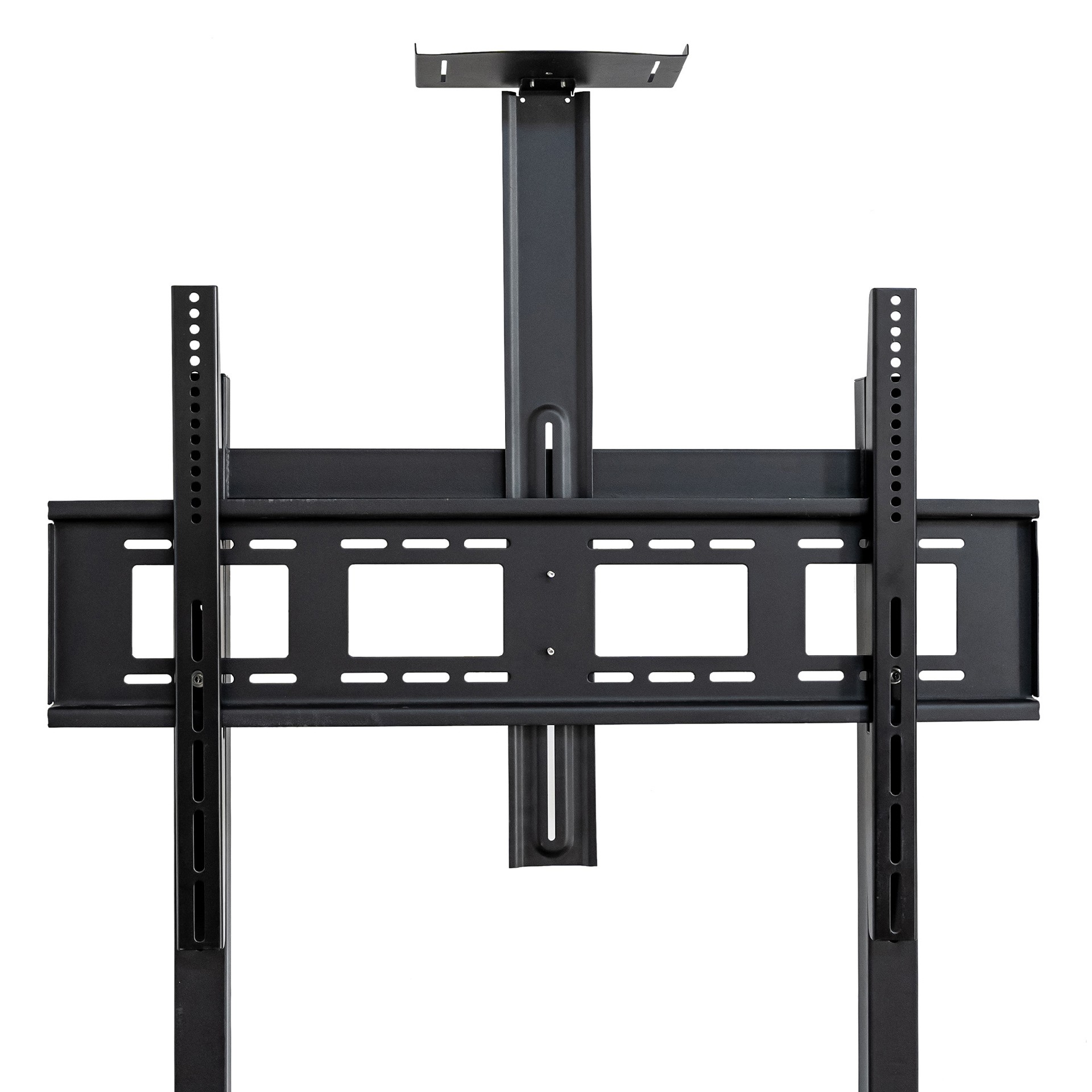

| Optional Components | Movable Stand, Webcam, Pen with two tips, OPS , Pointer, Microphone, Camera, Speaker. | ||||
1.We use original grade A screen. It has not brightened dot and fleck.

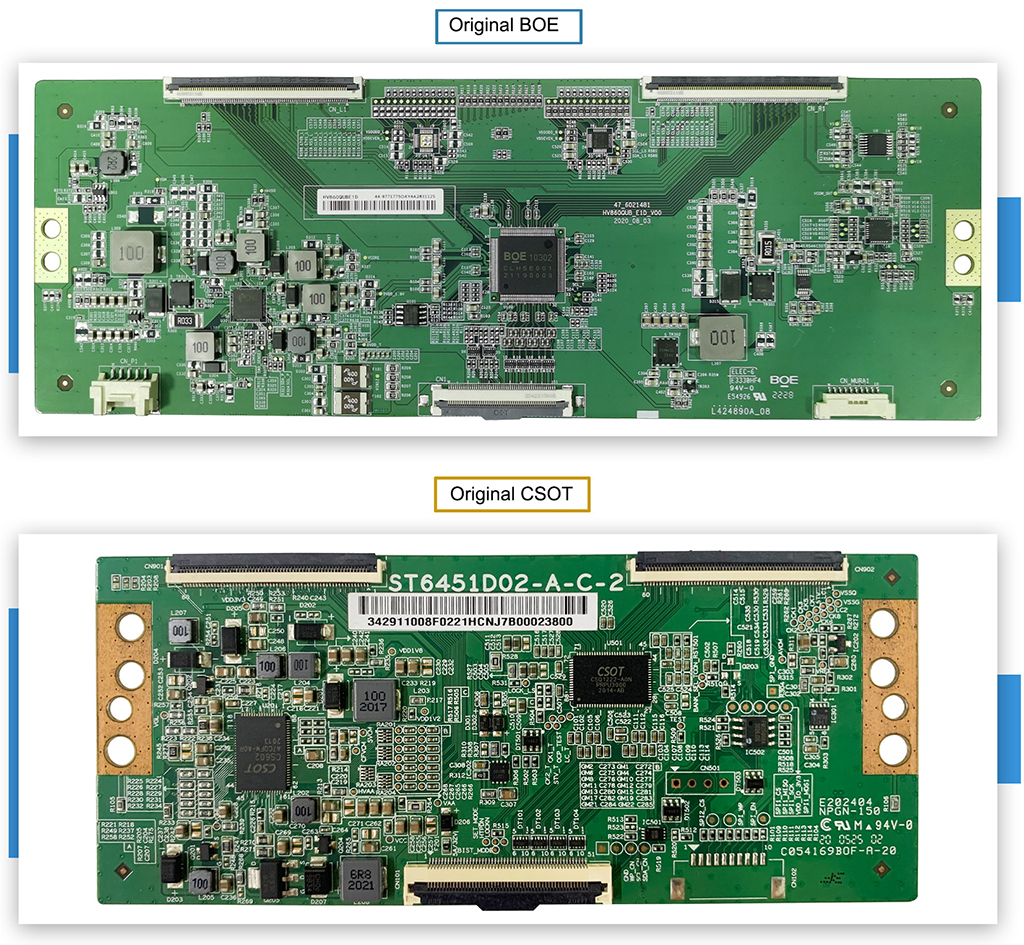

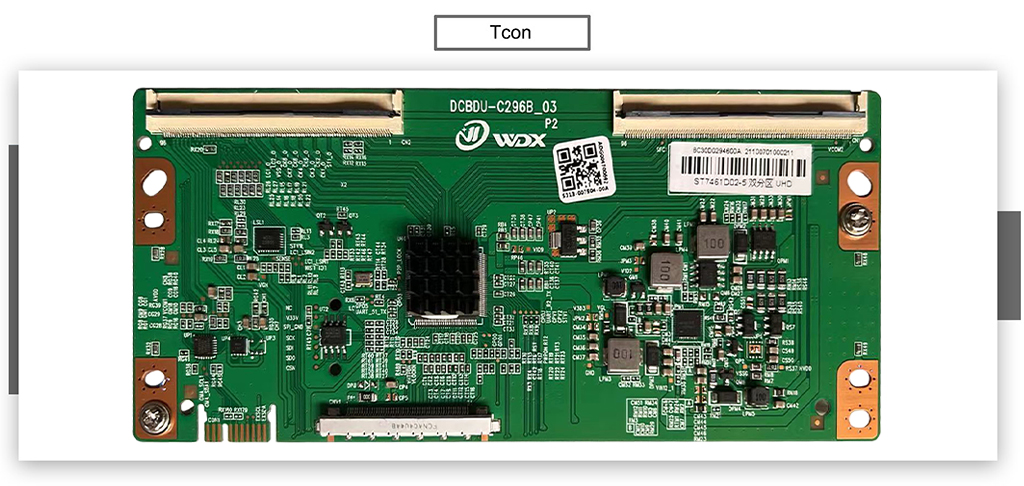

2. We use original Tcom boards to make sure it has better display and better quality.

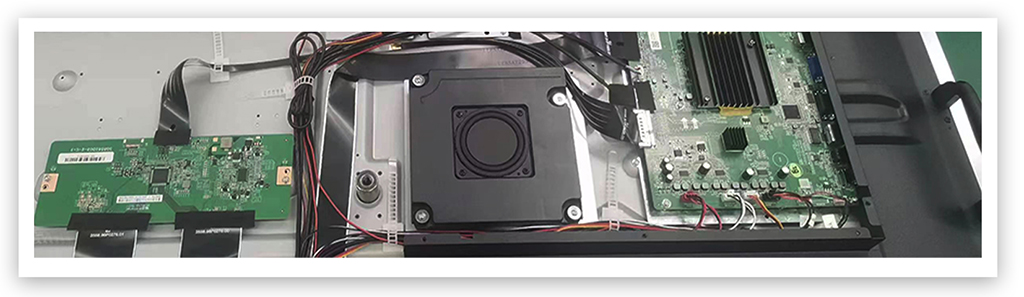

The following is the third party Tcon board. It can not display as
perfect as the original one and it is easy to be broken.
The following is from the third party Tcon board.
3. We can do OEM/ODM to our resellers if our customer order certain
quantity. We can customize or design new carton for our customer.

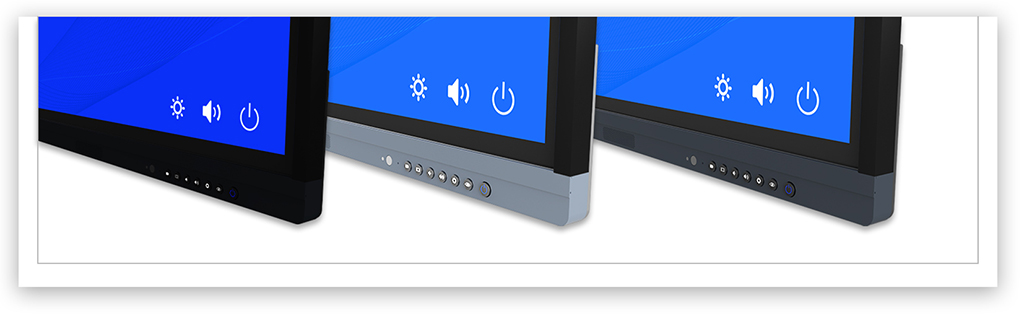

4. We can customize the frame color, we can make black, grey, white, or other colors. We can customize power button shape and position.
We can
customize the logo and paste on the frame.

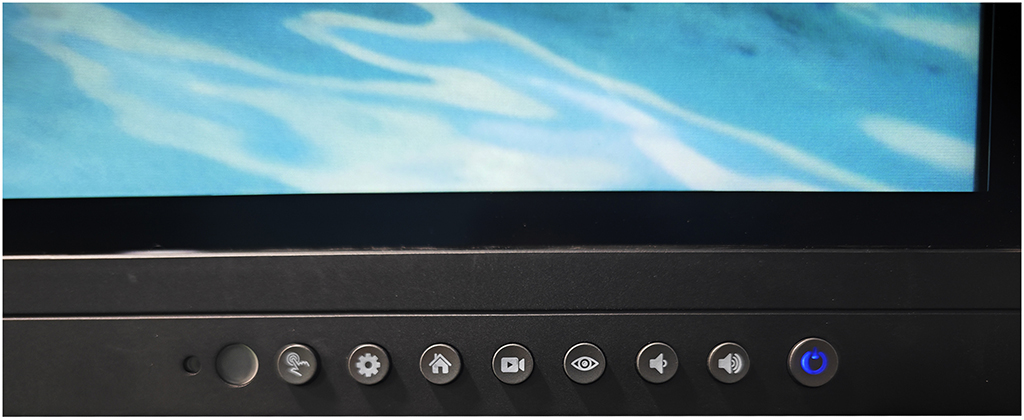

5. With physical front shortcut buttons, such as adjusting volume, main menu, setting, it will be much conevient for users.
1. 20W Subwoofer for better sound quality

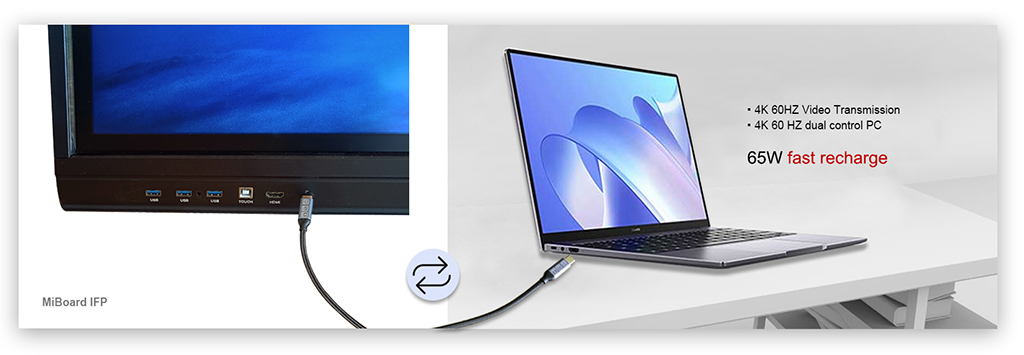

2. 65W USB-C fast charging for laptop.

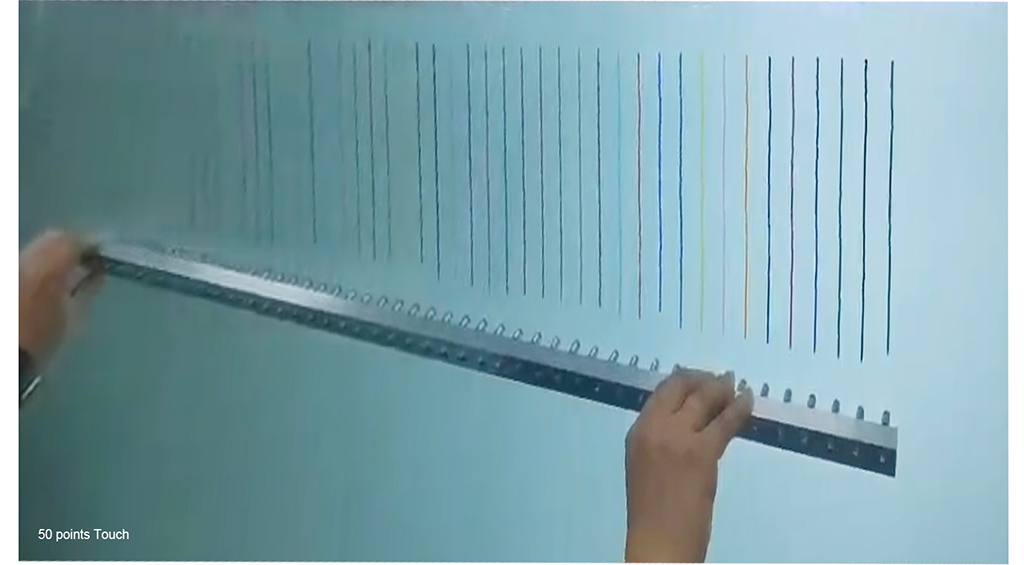

3. Support 50 points touch points for Windows

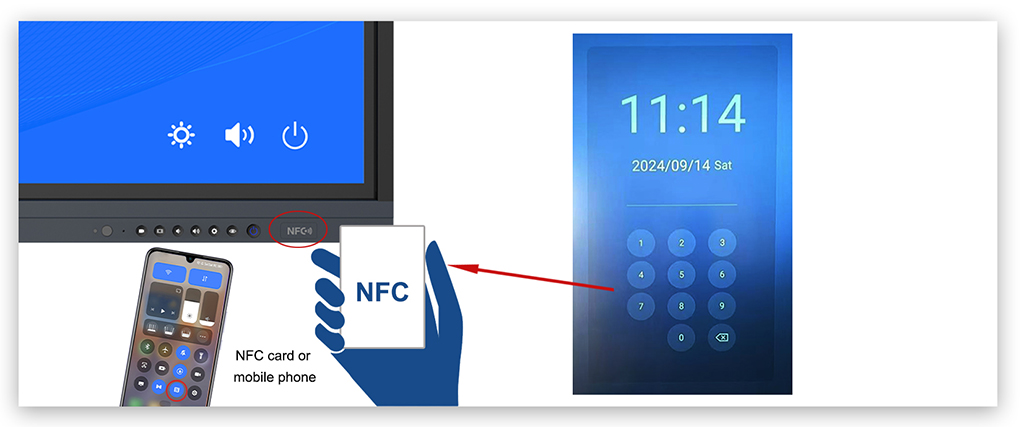

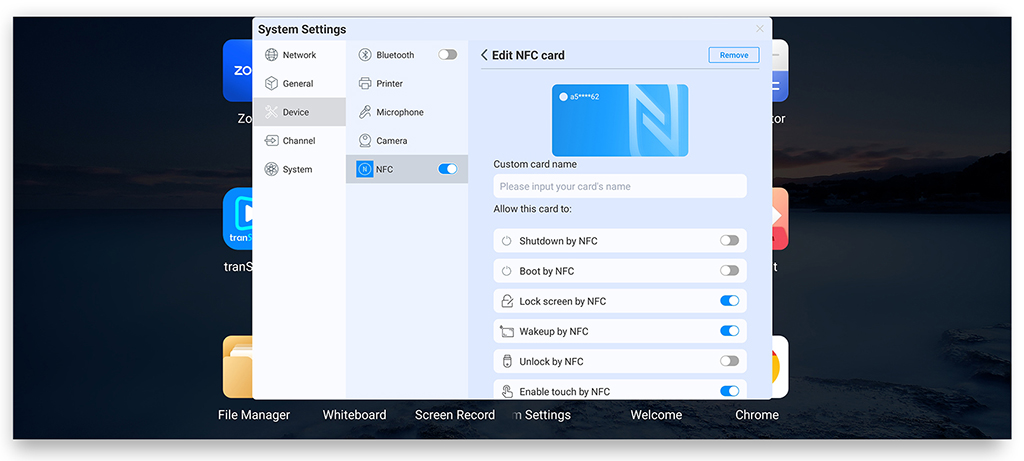

4. NFC function for locking or unlocking screen. Teacher can use NFC card or mobile phone to lock or unlock screen freely,
so that student can
not operate the IFP randomly.
Users can use NFC card to Shutdown, Boot, Lock Screen, Wakeup, Unlock and Enable touch.
Three years limited warranty. We always send some spare parts together with your order, and we also provide video training and online
traing to our customers. We provide 7*24 hours technical support by phone, email, Whatsapp and so on. Customers will rest assure to
use our product.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
1.Q: Can you do OEM/ODM to us?
A: Yes, we are factory.
2.Q: What is your minimum order quantity (MOQ)?
A: We accept any quantity of your order.

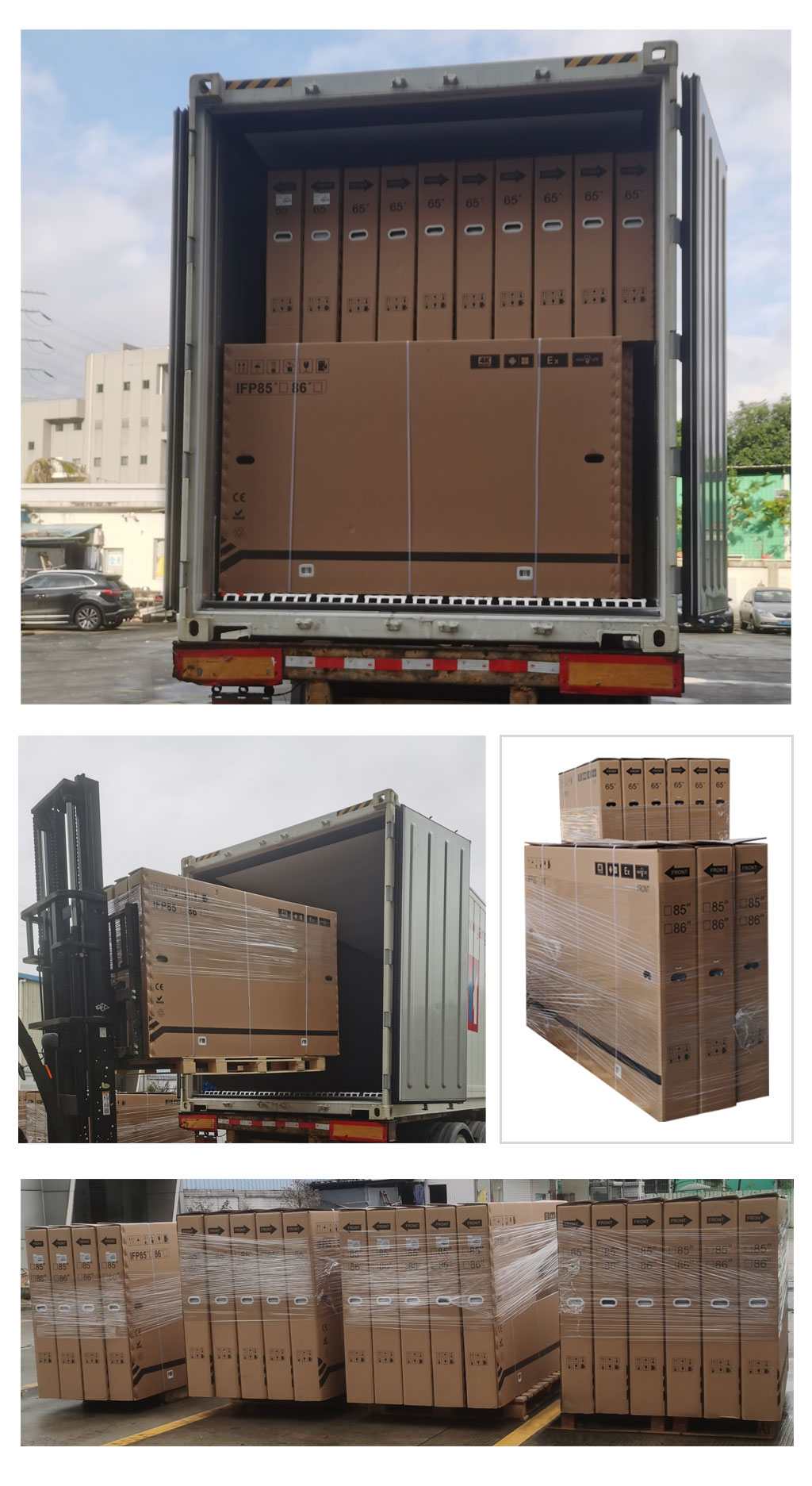

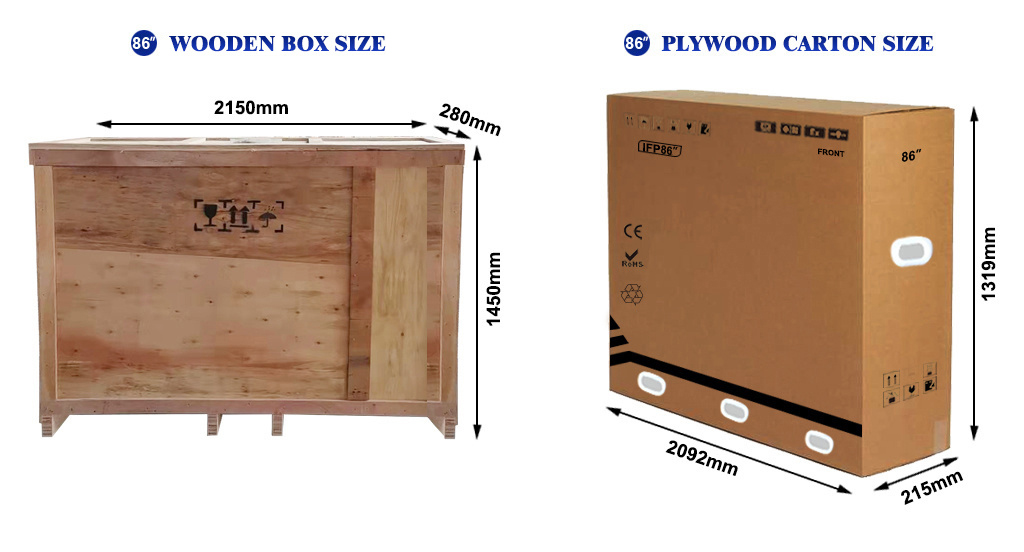

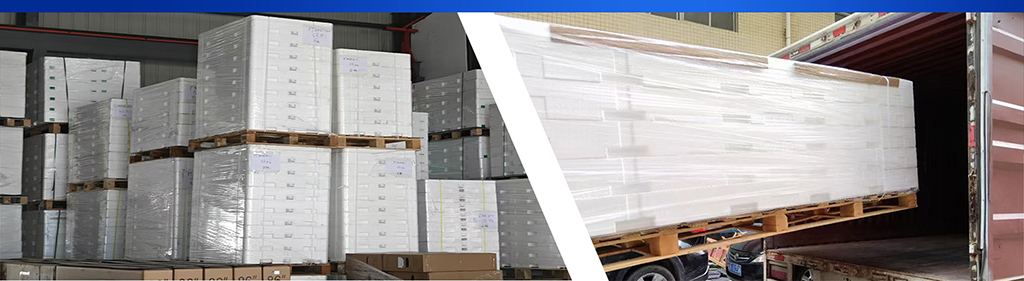

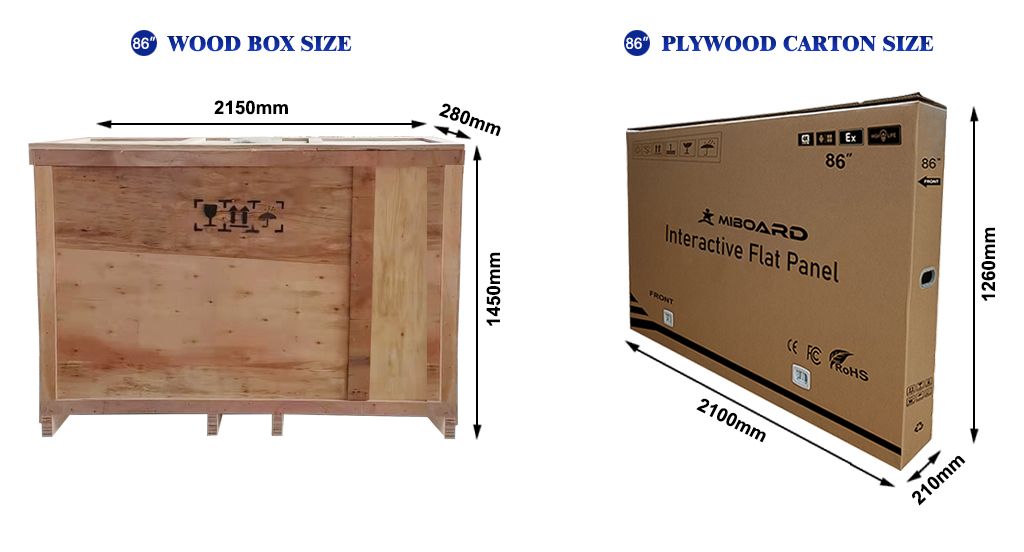

3.Q: What packaging options do you have?
A: We offer paper carton, wooden package, pallet package according to your shipment requirements.
4.Q: How long is the delivery time?
A:
Normally our delivery time is about 7-10 days according to the quantity
that you order. If you need urgently, we can try to delivery faster.
5.Q: What are your terms of payment?
A: We accept TT Advanced, Letter of credit, document of payment and so on.
6.Q: How do you guarantee quality?
A:
We also send some spare parts together with your order. We always try

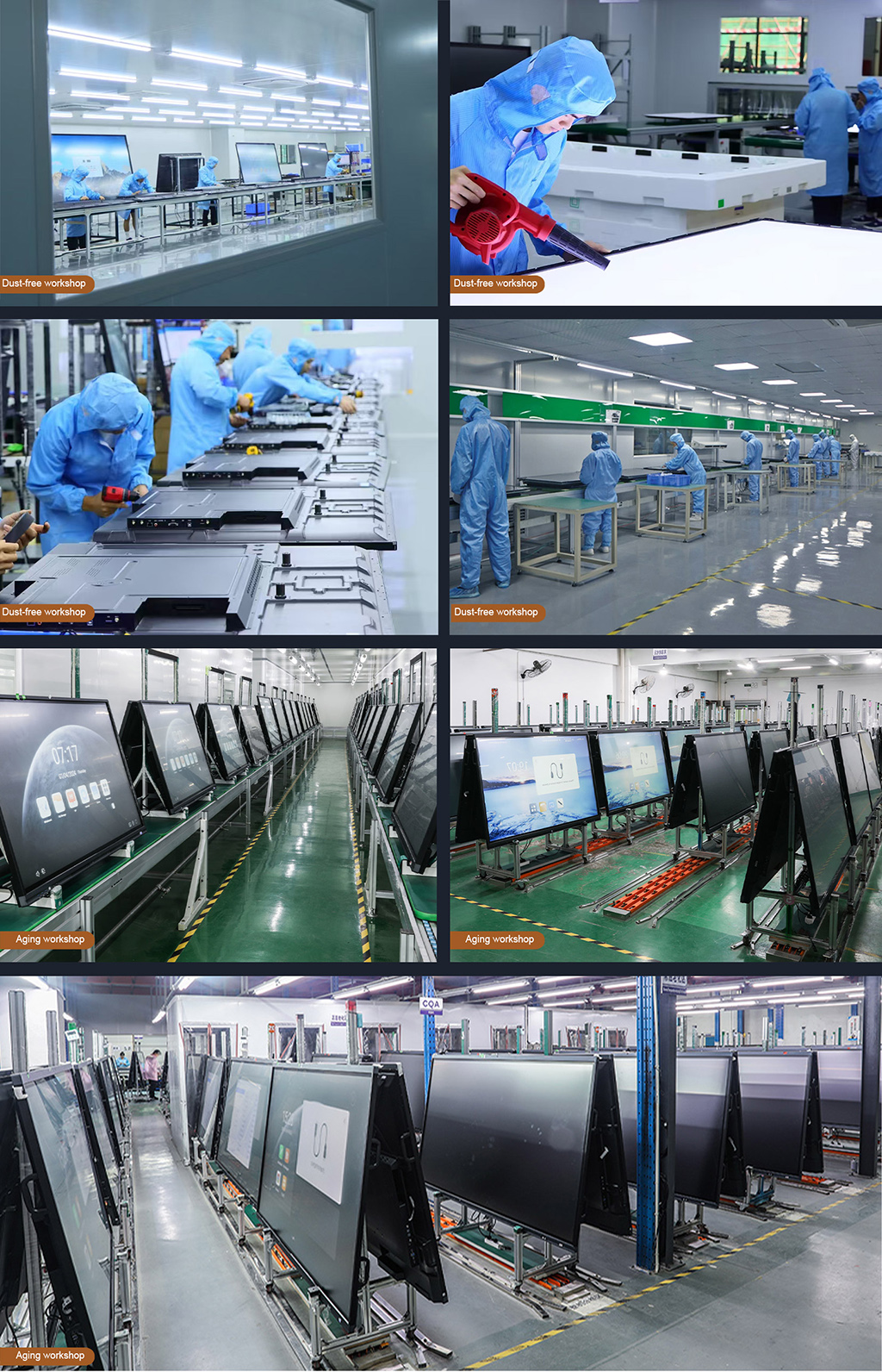

to do strict QC testing and long time high temperature aging.
7.Q: Hong long is the warranty for your products?
A: We provide 3 years warranty.
